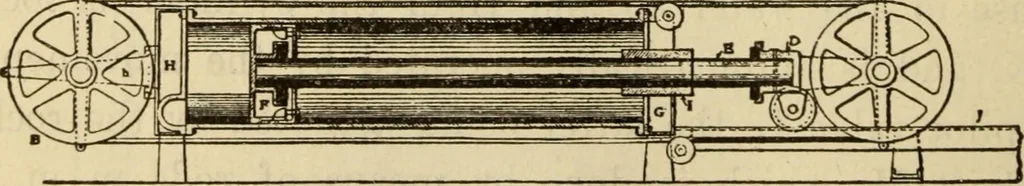

Fig. 402 cause shaft M to rock, thus moving the pilot valve bymeans of valve rod L. Moving the pilot valve will either … Fig. 403 open or close main valve K, which will allow the water toflow into, or out of the cylinder, depending upon whatdirection lever S is moved. Hydraulic Elevators 975 If the operator fails to return lever S to stop positionwhen the car reaches the top of the hatchway, the frameN will be…
