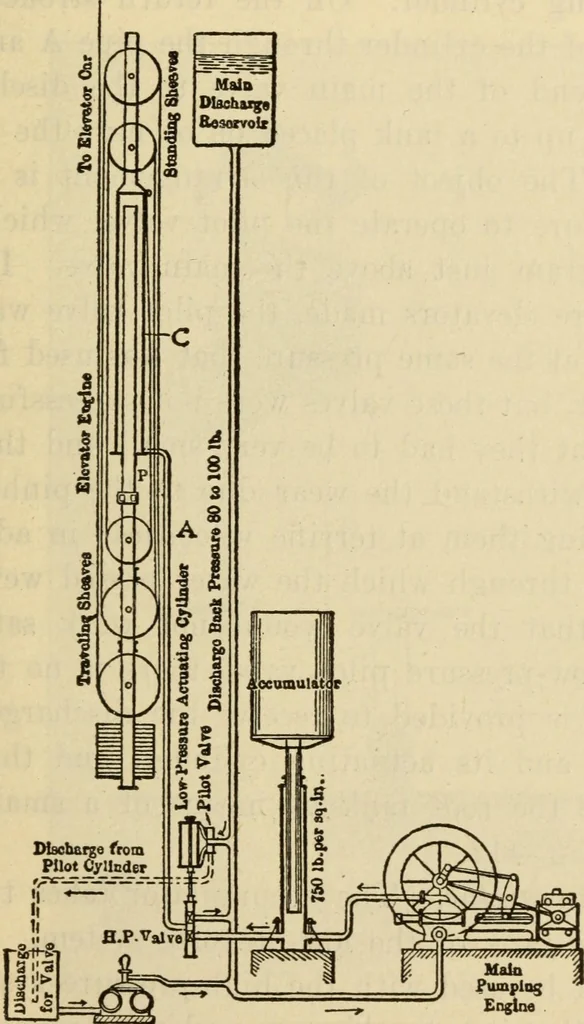

700 or 800 pounds brings about other changesin the construction of the machine and apparatus and alsoin the general arrangement of the system. The arrangement of the various parts of a high-pressuresystem is indicated by the diagram, Fig. 412. This dia-gram shows a machine geared six to one. The… … Pump to return Pilot Valve Dischargeto Mala Discharge Sjrtem Fig. 412 tion is vised because the small size of the cylinder makesit impracticable to use a piston and piston-rod, thereforea solid plunger is provided and the pressure acts to pushit out of the cylinder. 988 Steam Engineering In Fig.…
