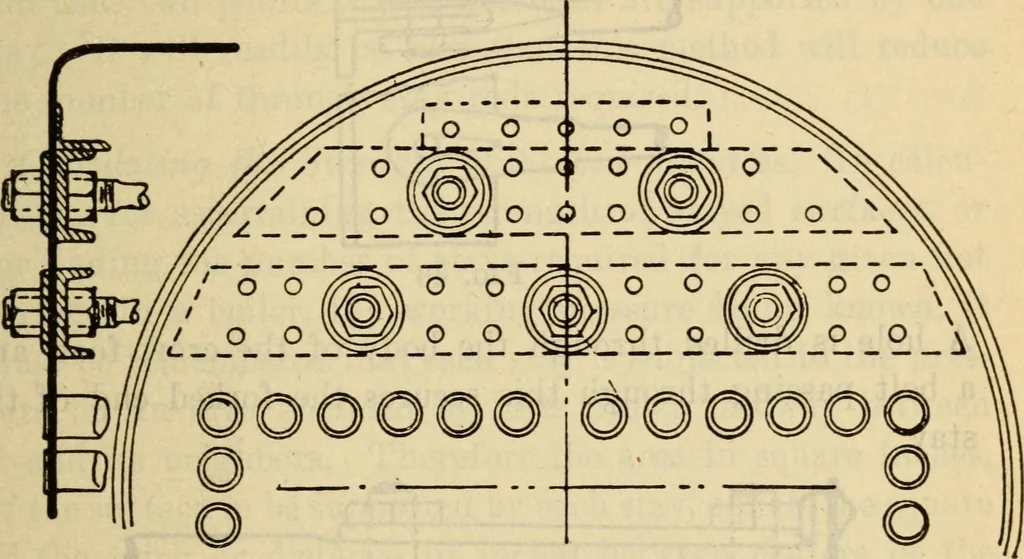

An illustration from Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise .., 1916, leaf 122 — plan is to rivet6-inch channel bars across the head, inside above the tubes,the number of bars depending upon the height of the seg-ment to be stayed. The channel bars are drilled to correspond with the holesthat are drilled in the plate to receive the stay rods, whichlatter are then secured by… … Fig. 44
