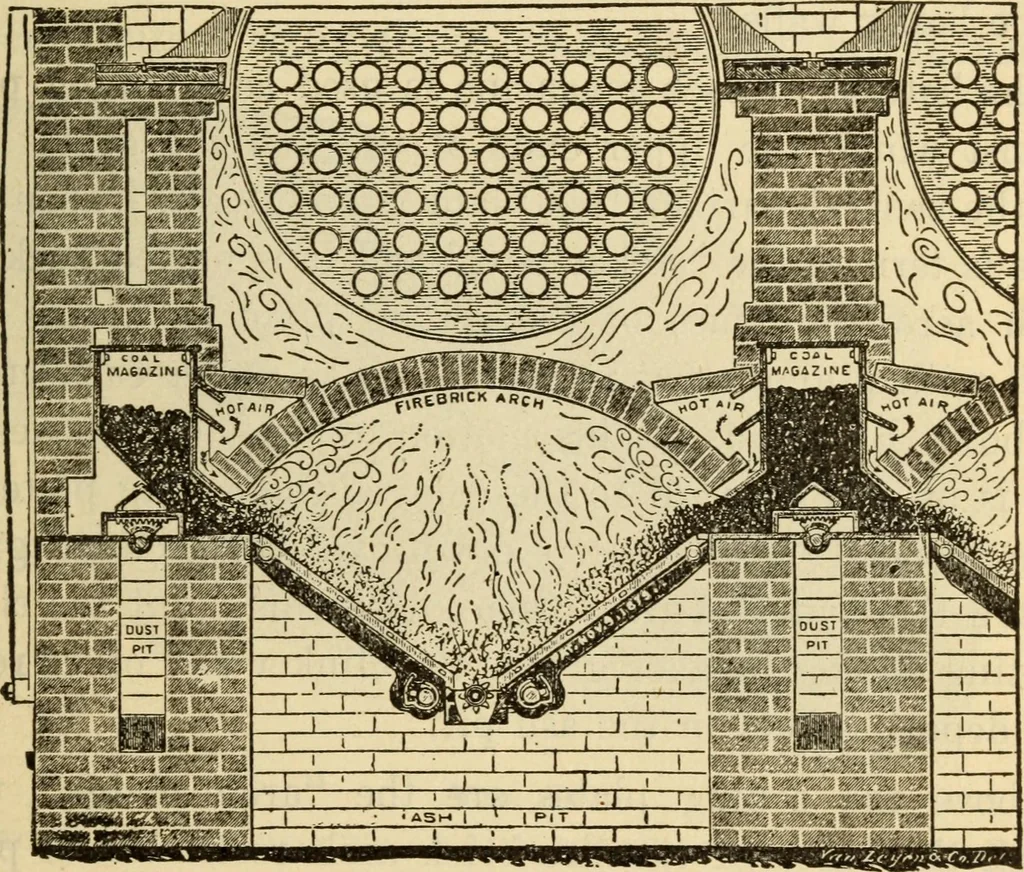

fact a series of hollowtrunks with their front ends open. When in operation a Mechanical Stokers 207 steam blast is admitted to each of the several trunk gratebars through the small branch pipes, and this blast inducesan air current of more or less pressure, which finds anoutlet through the narrow… … Fig. 83 THE MURPHY AUTOMATIC FURNACE overhead shaft; see Fig. 82. These cranks are set alternate-ly at 90° with each other, thus giving a forward movementto one-half of the grate bars, while at the same time theother half is moving backward. In this manner the fuelis kept slowly moving down the…
