Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise .. (1916)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago, F.J. Drake & company · leaf 262

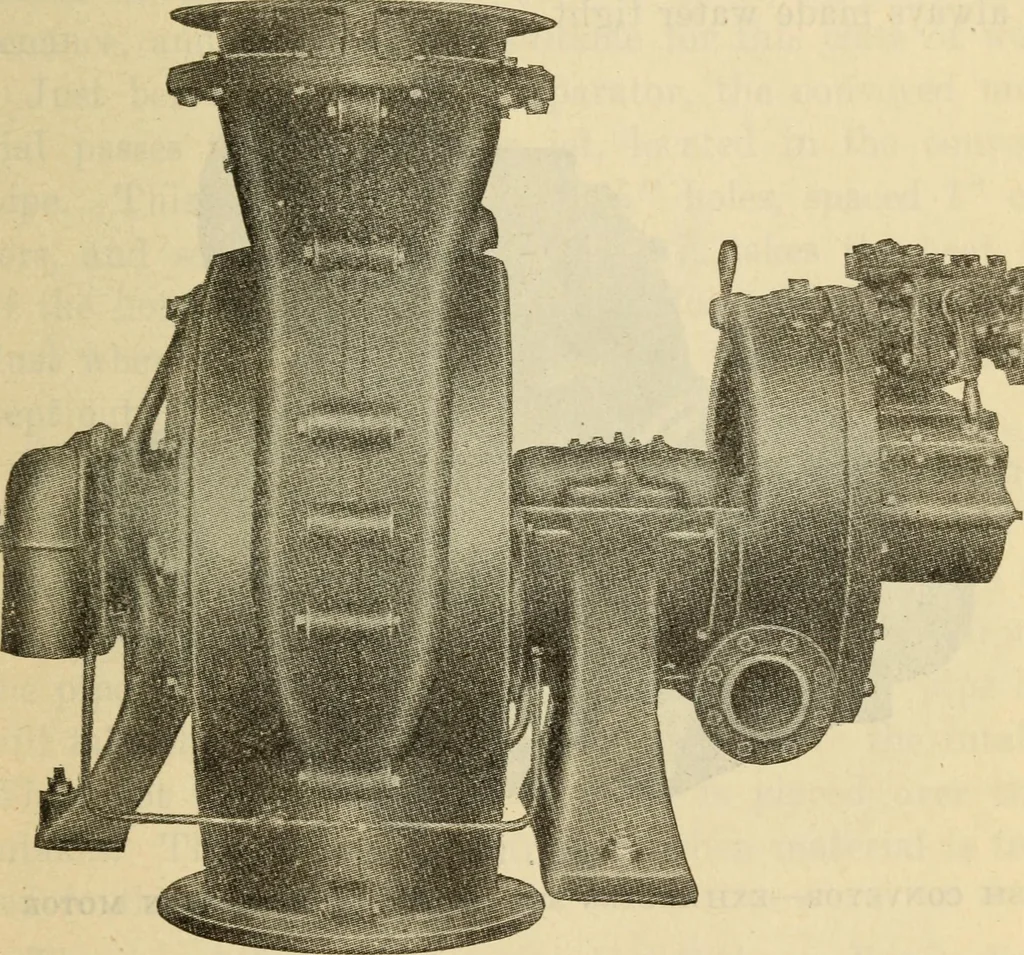

ling ashes from boilers conveyor pipe, as far as possible, is run in straight lines.It is generally placed beneath the surface, but can be ele-vated or run anywhere to suit conditions. Care and Operation of Boilers 249 The separator, which is in reality an expansion cham-ber, also serves as a… … Fig. OS ASH CONVEYOR EXHAUSTER SET DRIVEN BY STEAM TURBINE under-cut gate) into cars, carts or barges. This separatoris located in the most convenient position for the purpose.The separator can be made any size, to hold any predeterm-ined amount of material, or for a time run of the conveyorof any…
