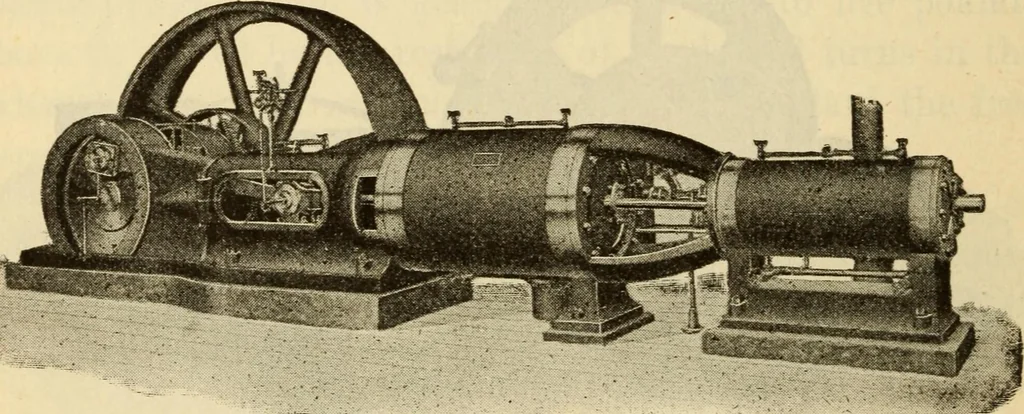

s, is not, as a rule,suitable to be fed to boilers. There are many different types of jet condensing ap-paratus, in some of which no air pump is used; their actionbeing based somewhat upon the principle of the injectorused for feeding boilers. In this type of jet condenserthe supply of condensing… … Fig. 112tandem compound engine, buckeye engine company of water into a nozzle which gradually contracts. Theexhaust steam, entering at the same time, is condensed,and the contracting neck of the cone shaped nozzle gradu-ally brings the water to a solid jet, and it rushes throughthe nozzle with a…
