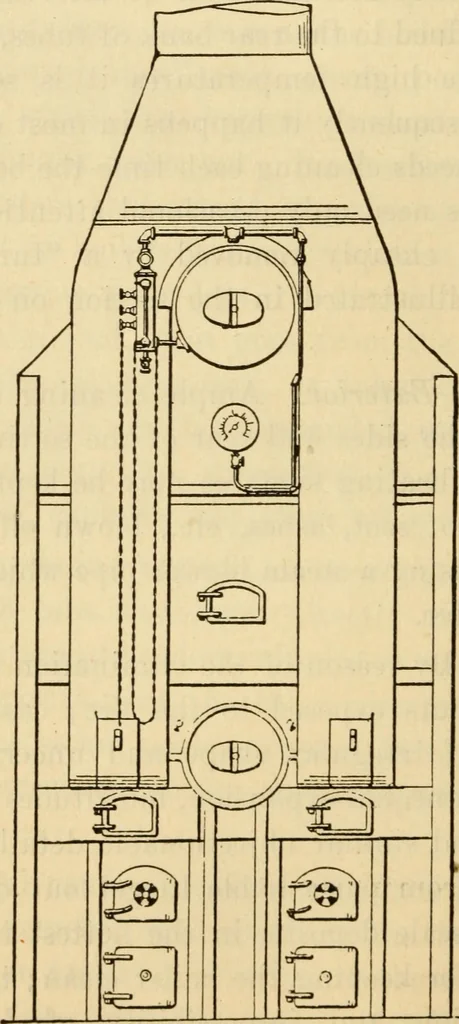

for keeping the boiler clean; the rapidity ofvater circulation and impossibility of forming steamockets, all combine to protect the tubes against burning 28 Steam Engineering out. Hence the necessity of repairs to the boiler itself \Sextremely remote. The setting is simple and substantialand not… … Fig. 14front elevation maxim boiler Maxim Water Tube Boiler 29 Each tube has two bends, thus providing for unequal ex-pansion and contraction. The space between the tubes isgreater than the diameter of the tubes, so that any tubecan be passed through the space between. The tubes, whichare nearly…
