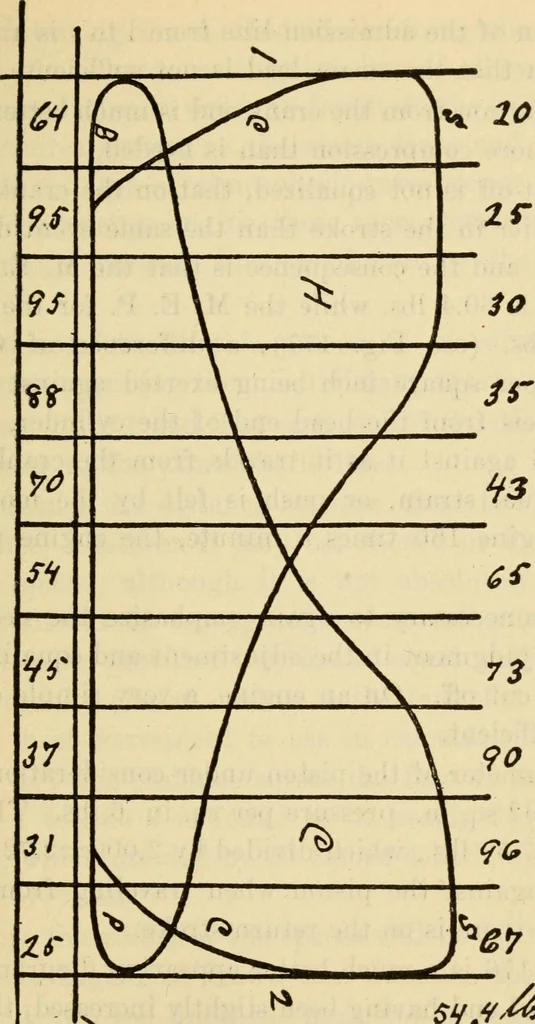

< ^ These two factors, lead and compression, may always bedistinguished by observing the character of the admissionline. L Diagram Analysis 489 … Fig. 177 A curve, such as shown at L, denotes too early closureof the exhaust, and the rounded corner at % and inward 490 Steam Engineering inclination of the admission line from 1 to s is a pretty sureindication that the steam lead is not sufficient. The diagram from the crank end is much better,…
