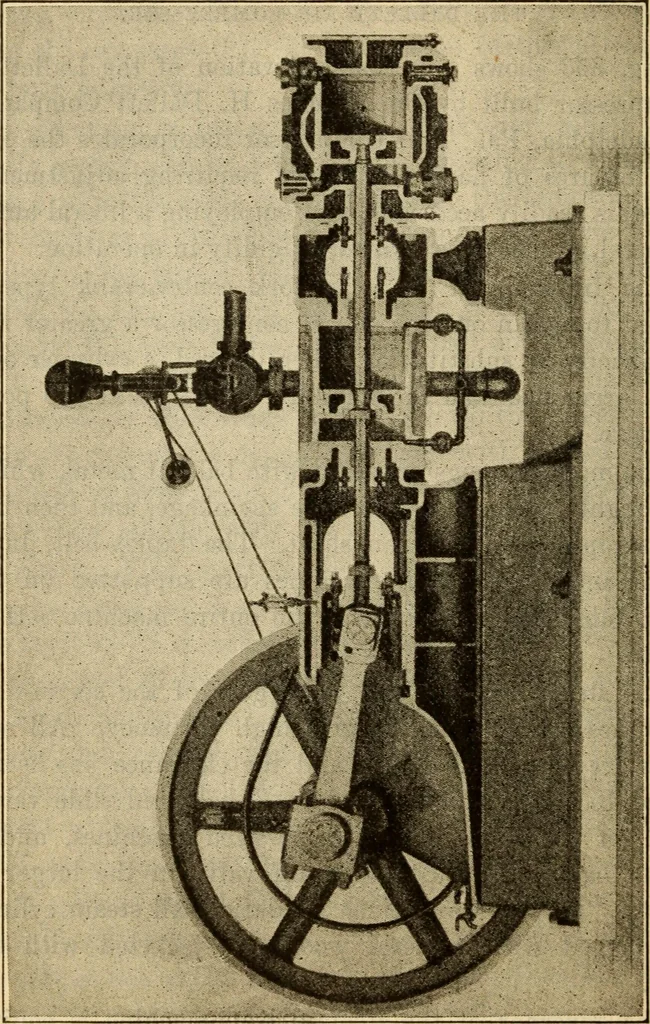

ized machines, and theMeyer balanced adjustable cutoff valve in the larger ma-chines. To provide efficient insulation, all steam cylindersare lagged with mineral wool and jacketed with sheetsteel. The governor of the steam-driven machine is equippedwith a safety-stop device. The governor pulley is… … Fig. 353sectional elevation of dallett steam driven air compressor compressors with compound steam cylinders, if the ma-chine stopped with the high-pressure side on the dead Dallett Air Compressor 845 center, it would not start automatically, due to the fact thatthe high-pressure side takes steam…
