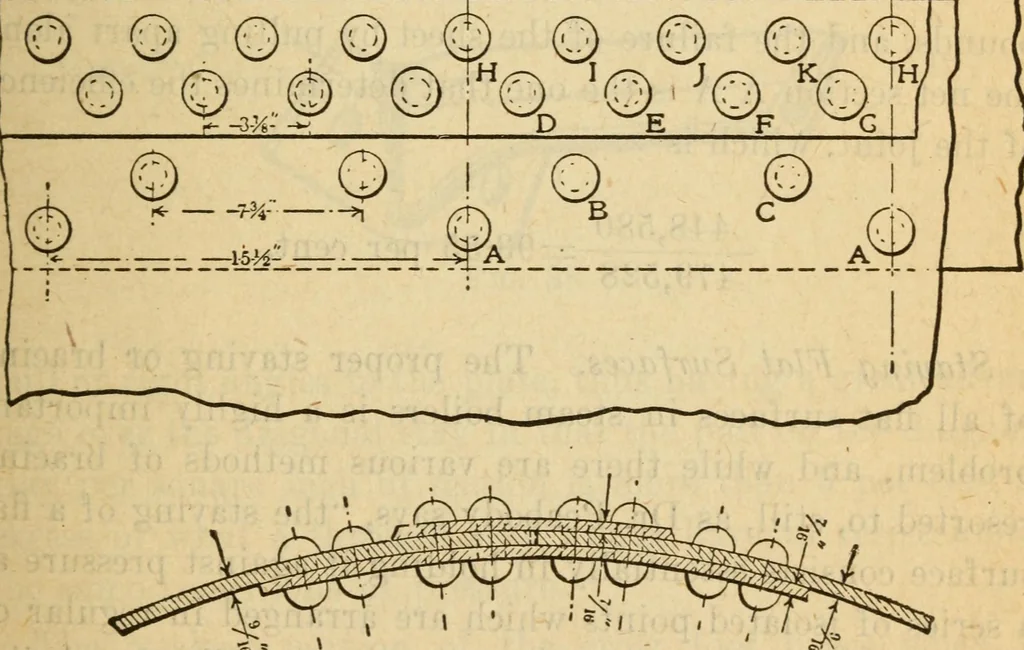

©. © © © ©__©__©jj ©o©l|^©7©~^©^S)l … Fig. 37quadruple riveted butt joint (^ Crushing of rivets D, E, F, G, H, I, J, K in theplate and shearing rivets A, B, C. Using the numerical values previously given: (1) (15.5—1)X0.5625X55,000=:448,580 pounds. 102 S tea 7)1 Engineering (2) [ (15.5—4)X0.5625X55,000] + (3X42,000X0.7854) =454,739…
