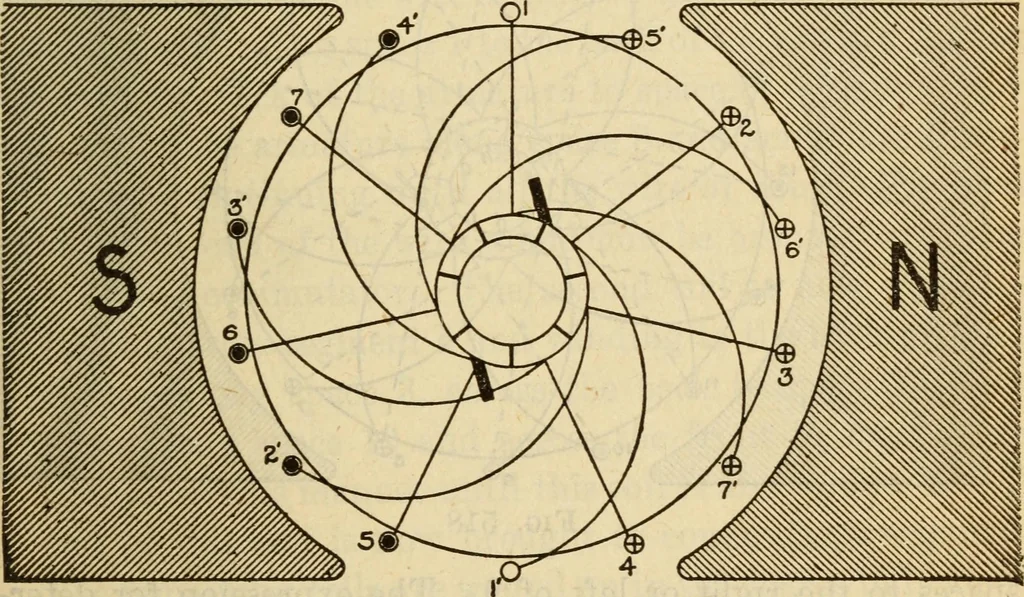

11, and Armature Winding 1167 the even numbered positions will then serve as the returnsfor these wires. It will be noticed that in the example shown there are6 coils^ comprising 12 conductors and 6 commutator seg-ments. If the armature was so designed that we had anuneven number of coils^ for… … Fig. 517 winding. Only one coil will be short-circuited at a timefor, with the brushes set across a diameter of the commuta^.tor when one brush is in such a position that it laps acrosstwo segments, the other brush is in the center of a segment,Fig. 518 shows the connections of a drum-wound…
