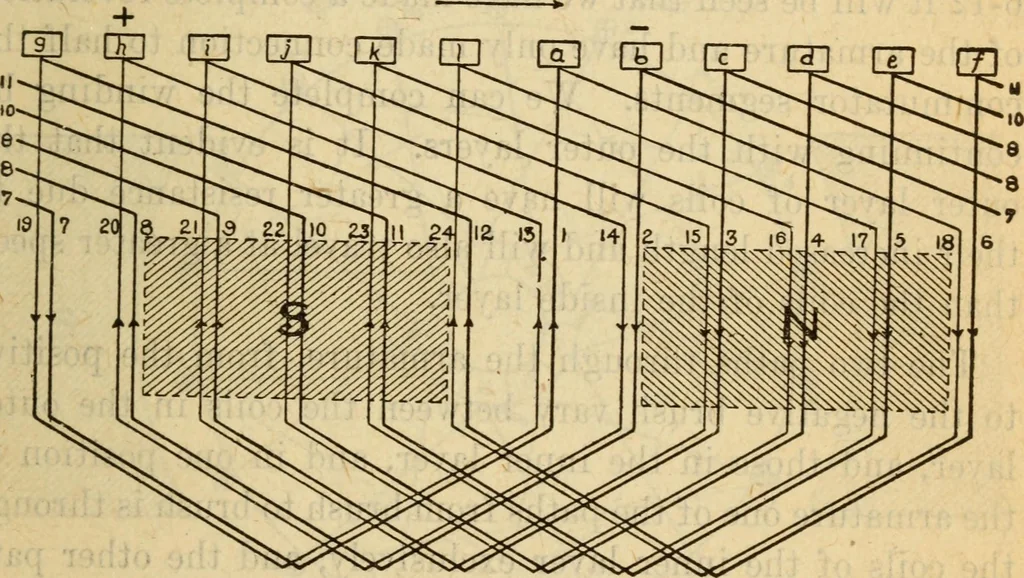

Winding 1173 spaces ahead of it. The coils short-circnited by the brushesare now separated, and there are fewer crosses between con-ductors at the ends of the armature. Tracing out the cir-cuits it will be seen that the current induced in some of theconductors is in opposition to that of the… … Fig. 523 with 24 conductors and 12 commutator segments with thewire placed on in two layers. The development of this wind-ing is also shown in Fig. 523o The winding table is givenbelow: a-l-7-b g-19-13-h b-2-8-c h-20-14-i c-3-9-d i-21-15-] d-4-lO-e j-22-16-k e-5-ll-f k-23-17-1 f-6-12-g 1.24-18-a…
