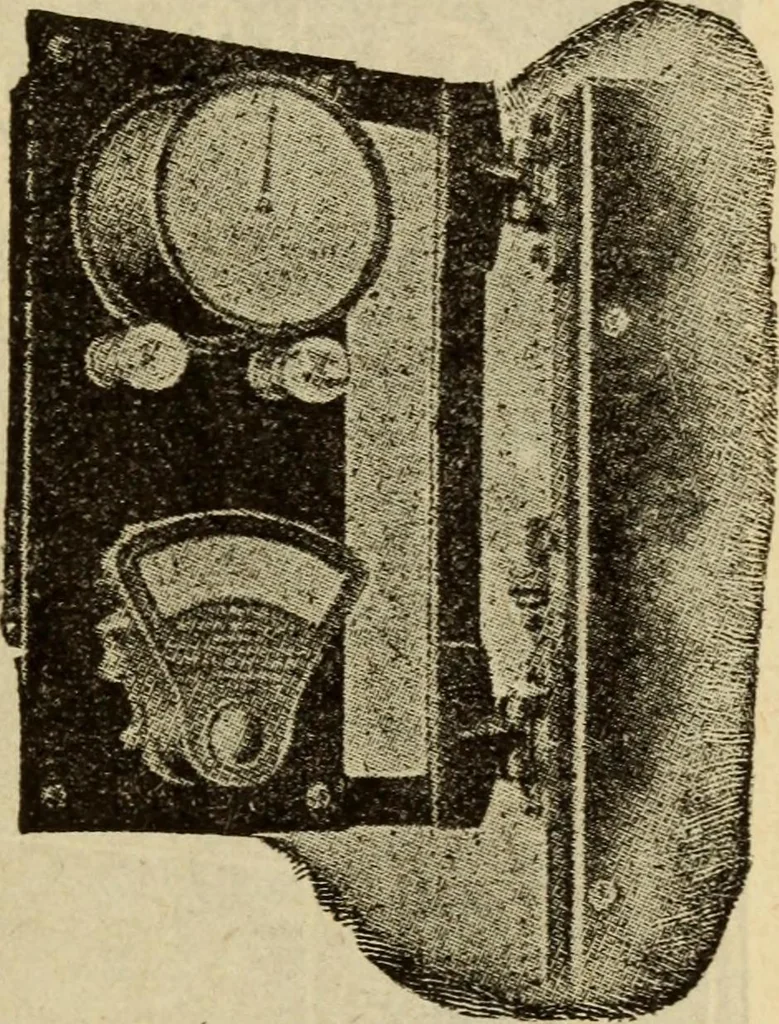

tot Uffhtn/npl%% /frresters Fig. 569a. c. outgoing line panel Switch Boards 1247 • On the frame of each exciter there are required thefollowing switches^ mounted on a common slate base: 1 S. P. S. T. negative lever switch. 1 S. P. S. T. lever switch for equalizing. The exciter panels are designed… … FiG. 570 SYNCHRONISM INDICATOR AND EXCITER VOLTMETER ON SWINGING BRACKET nected through their switches to the negative and equalizerbus-bars, which are placed under the floor near the exciters.With the bus-bars of opposite polarity so widely separatedthere is practically no chance of short circuit…
