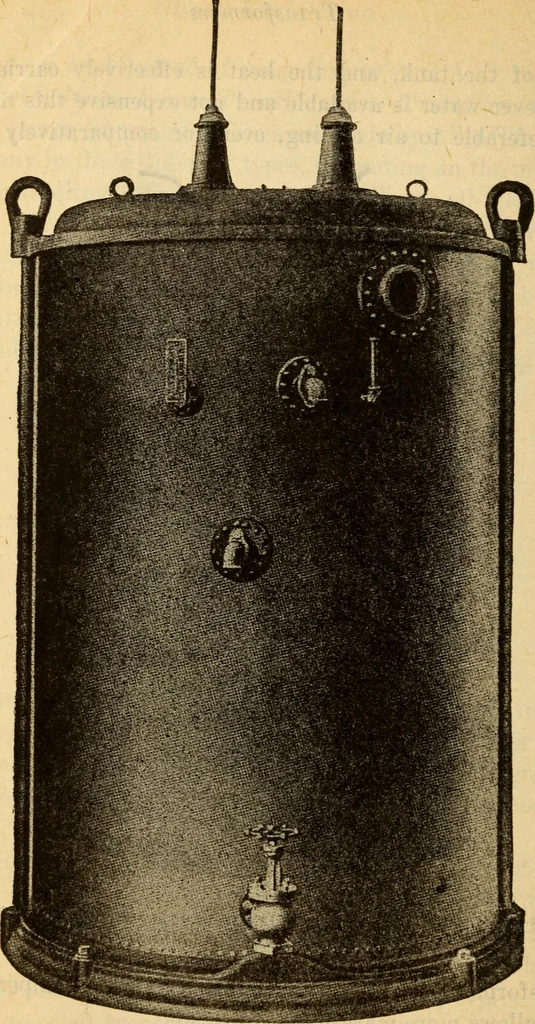

Fig. 593 ALUS-CHALMERS OIL-FILLED SELF-COOLED TRANSFORMER, 60 CYCLE?, 170 K. w., 20,000 TO 2,300 volts transformers, as it permits operation at lower temperatures,and allows more margin for overloads. Air-blast transformers are made in sizes from 75 K. V,A. up. Cooling is effected by placing the… … Fig. 594 ALLIS-CHALMERS OIL-FILLED WATER-COOLED TRANSFORMER, 25 CYCLE, 500 K. w., 20,000 TO 375 volts J Transformers • 1273 an air chamber in which a pressure of air is maintainedby motor driven fans; currents of air passing up around thetransformer carry off the heat. In this type oil cannot be,…
