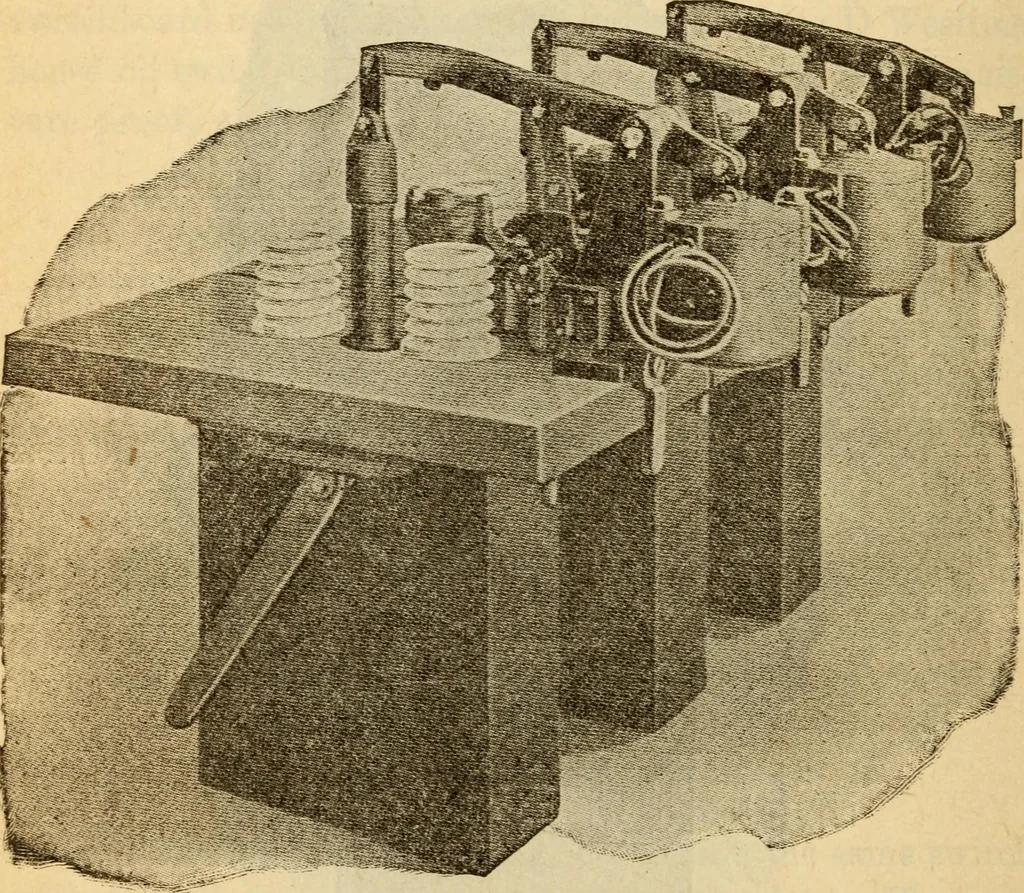

secured to the frame. Theleads are brought to the terminals of the stationary contactwithin the insulator, forming an unbroken and continuous 1302 Steam Engineering insulated conductor between the circuit-breaker^ and thebus-bar or line. Each pole of the circuit-breaker has a tankin which its live… … FiG. 608 TYPE E WESTINGHOUSE OIL CIRCUIT BREAKER I tween the two stationary contacts^ yet allowing ample spacefor the movement of the wooden arm and its contacts. Thelining serves as an insulation^ and reduces to a minimum alldanger of the arc communicating through the oil. Any oneof the tanks may…
