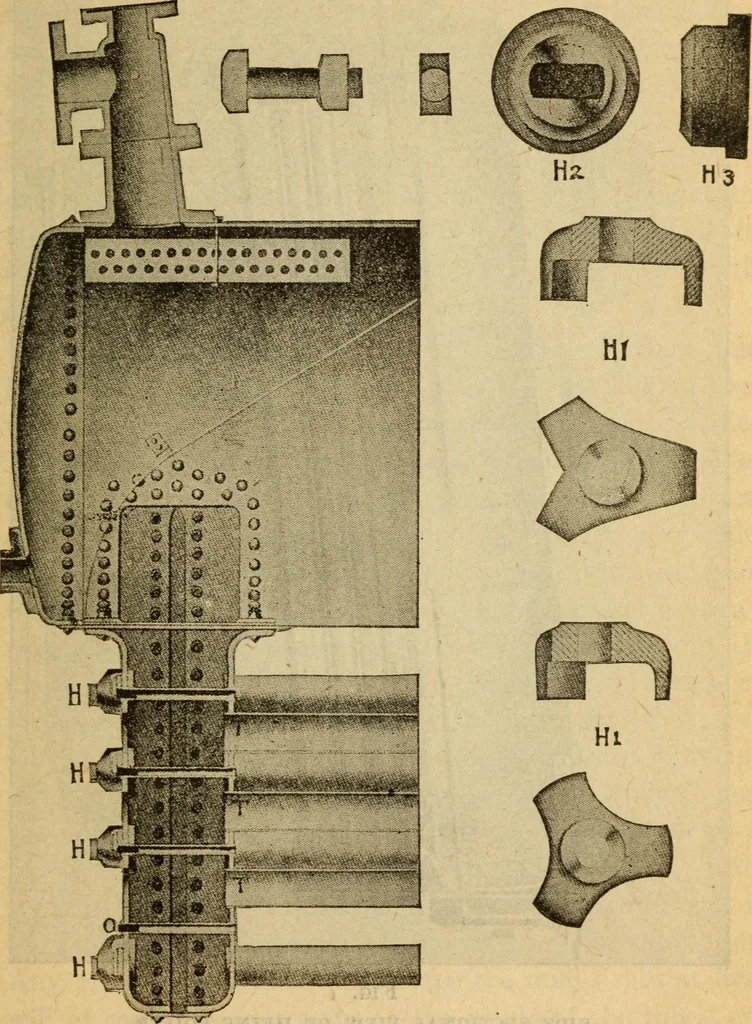

the shell,the whole contents of the drum being equally divided be-tween steam and water. The tubes extend through the tube sheets into whichthey are expanded with roller expanders; apposite the endof each and in the head plates is placed a hand hole ofslightly larger diameter than the tube, and… … Fig. 6 i^etail of water-leg, hand hole plates and yokes, etc., of heine boilers 12 Steam Engineering
