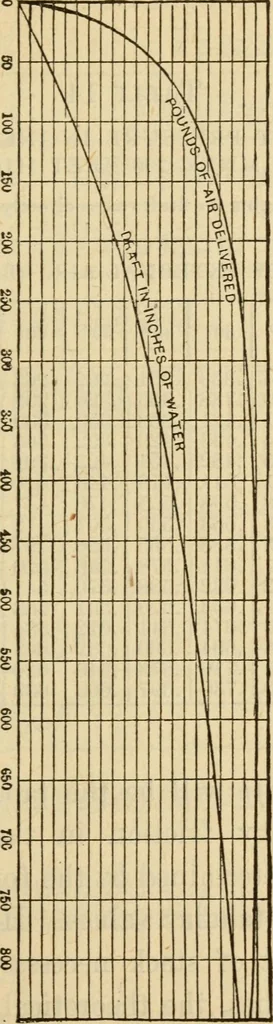

ver per hour, multiply the distance ininches, at given temperature, on the diagram. Fig. 96, by1,000 times the effective area in square feet, and by thesquare root of the height in feet. This gives a maximum.Friction in flues and furnace may reduce it greatly. The external diameter of a brick… … Fig. 96 Thickness of brick work: one brick (8 or 9 inches) for25 feet from the top^ increasing V2 brick (4 or 4^/2 inches)for each 25 feet from the top downwards. 236 Steam Engineering If the inside diameter exceed 5 feet the top lengthshould be 11/2 bricks, and if under 3 feet it may be 1/2brick…
