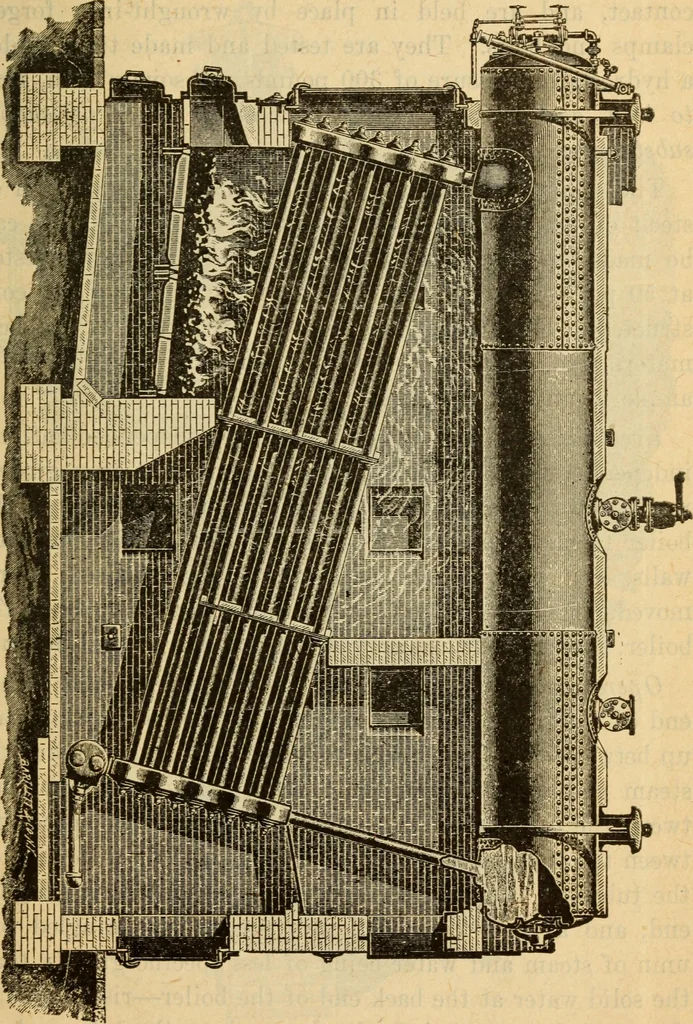

accurately sized, madetapering, and the tubes fixed therein by an expander. Thesections thus formed are connected with the drum, andwith the mud-drum also by short tubes expanded intobored holes, doing away with all bolts, and leaving a clearpassageway between the several parts. The openings… … Fig. 8 side view of babcock & wilcox boiler of wrought steel construction 18 Steam Engineering contact^ and are held in place by wrought-iron forgedclamps and bolts. They are tested and made tight undera hydrostatic pressure of 300 pounds per square inch^ ironto iron, and without rubber packing…
