Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery (1922)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 261

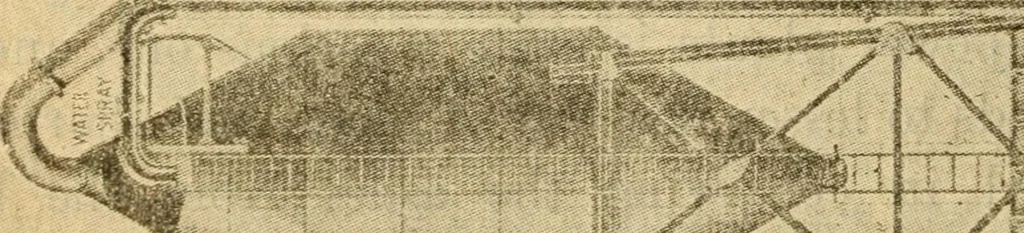

f labor, and shorten thetime consumed in conveying the ashes from the boilerroom certainly merits the attention of chief engineers. The suction conveyor system of the Darley EngineeringCompany, Chicago, a general view of which is shown inFig. 97, consists essentially of four parts, as follows: 1.… … ^:^../ •^ I Fig. 97 diagram showing a complete suction conveyor system as applied to handling ashes b~rom boilers conveyor pipe, as far as possible, is run in straight lines.It is generally placed beneath the snrfsK^e, but can be ele-vated or run anywhere to suit conditions. Care and Operation of…
