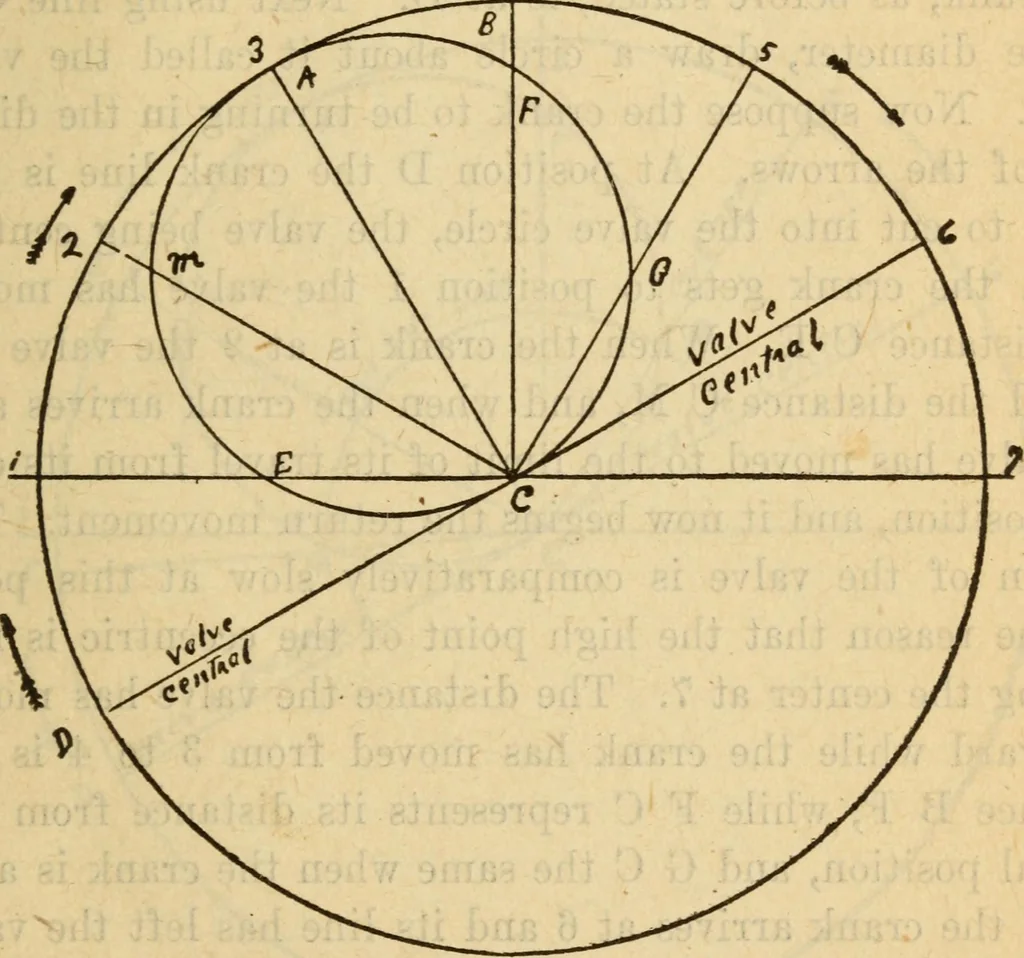

e graphically illustrated by meansof valve diagrams, of which there are several differentkinds, notably the Bilgram and Zeuner. The Zeuner dia-^am will be made use of in this instance. Valves and Valve Setting 379 Kgure 123 shows the total movement of the valve, re-gardless of lap and lead. First… … Kadfus* OP £c^cntfiif/fy -^ Zi^*^ Fig. 123 6 equals the radius of eccentricity. Line C D representsthe position of the crank when the valve is at mid triavelor in its central position, D being the location of the crankpin. Eeferring back to Fig. 116, the valve is there shownin its central position,…
