Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery (1922)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 399

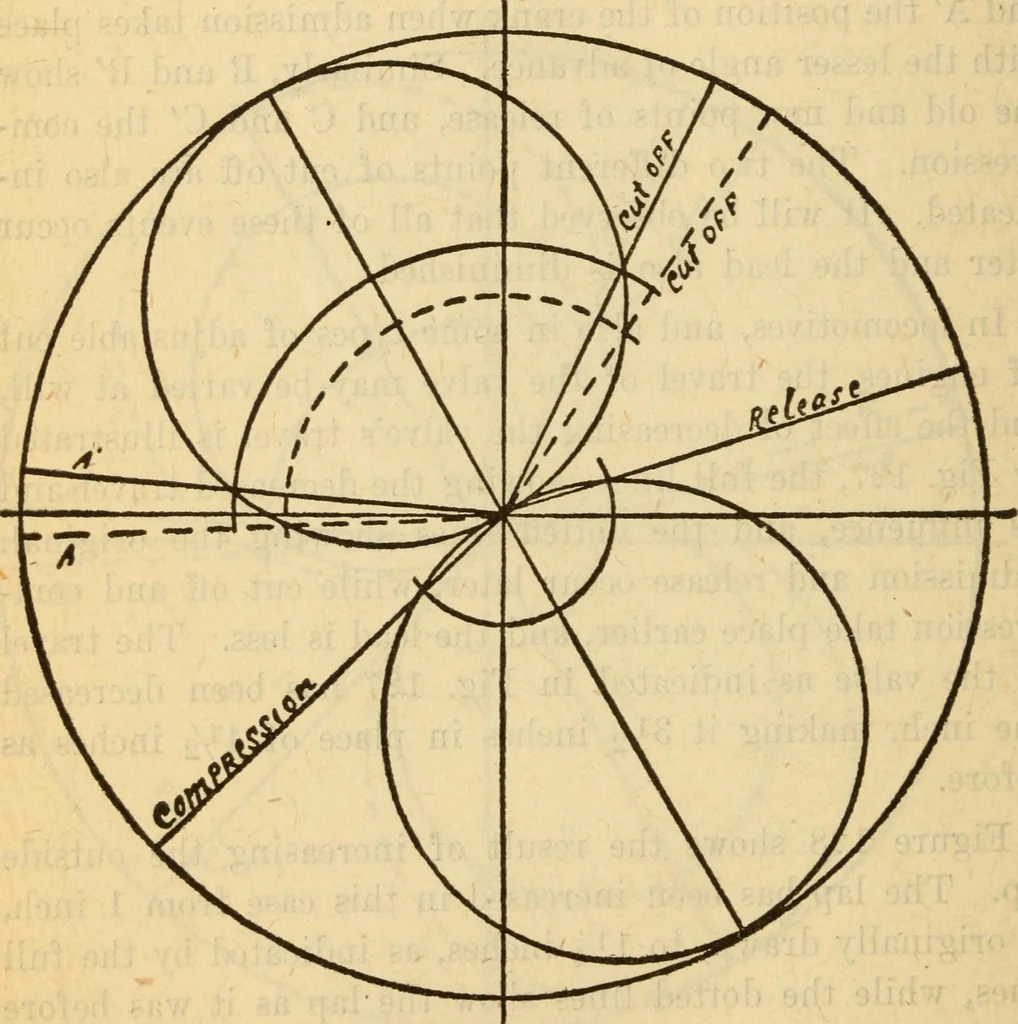

that theselatter events are controlled by the inside lap, which hasnot been changed. In Fig. 125 the valve is shown as cutting off the steamwhen the ci^ank has completed 120°, or two-thirds of the 386 Steam Engineering half revolution^ but the point of cut off on the indicatordiagram shows that the… … Fig. 128 complete the stroke from this point than the piston does.In order to cause the valve to cut off earlier, say at one-half stroke, it will be necessary to do one of two things,either to increase the outside lap, which would have atendency to cause admission to occur too late, or the…
