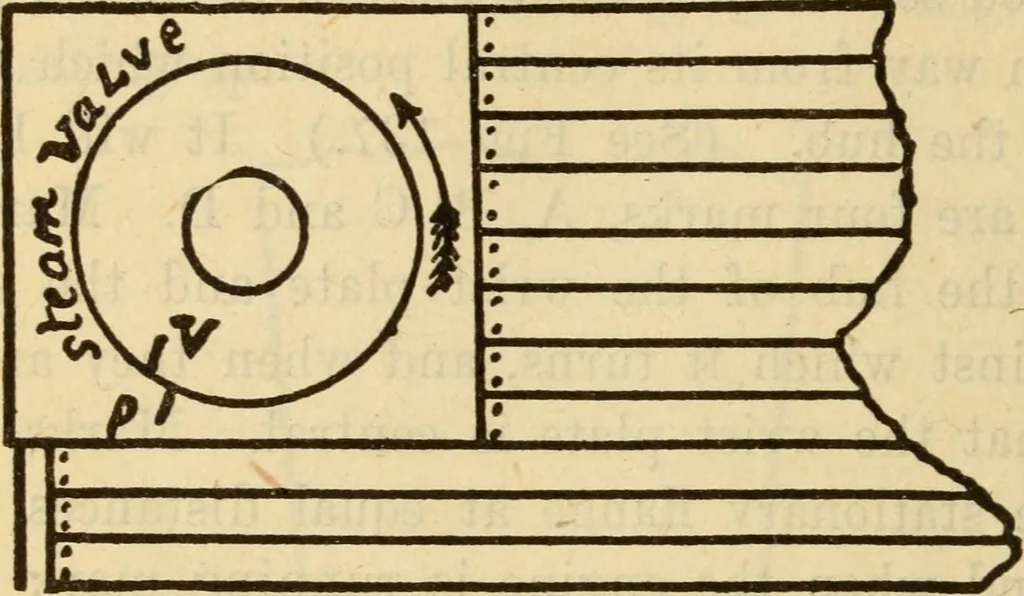

ust be made on the length of the eccentric rod,which can be screwed into or out of the strap. The vibra-tion of the wrist plate should then be tested by turningthe eccentric around on the shaft in the direction the engineis to run. When this is found to be correct the next step 400 Steam… … Fig. 138 The working edges of the valve, as well as the ports ofa Corliss engine, cannot be seen when the valves are in place,owing to the fact that the circular ends of the valves fillthe spaces at the ends of the valve chambers, but certain
