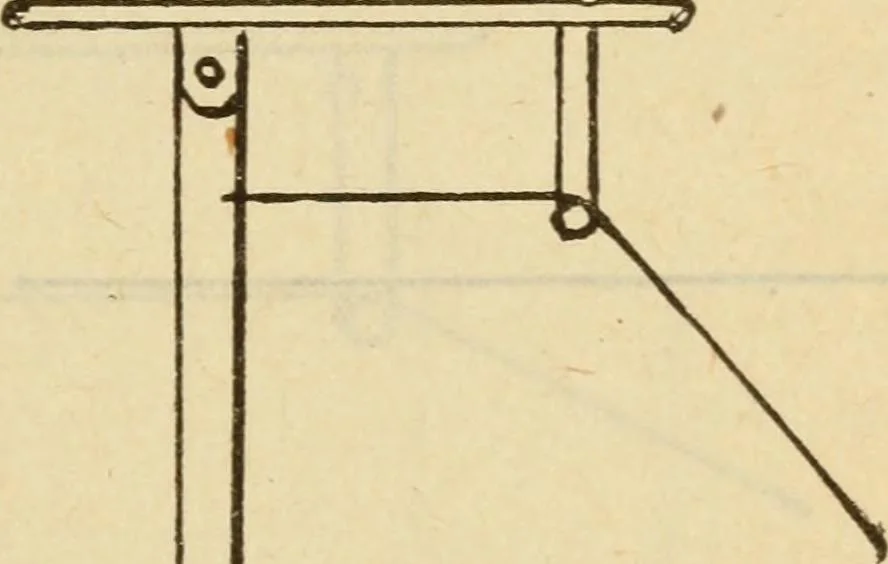

An illustration from Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery, 1922, leaf 488
from the bottom flange of the The Indicator ^L^ large sheave^ as shown in Fig. 166. Then the cord from thepaper drum must be brought down and around the smallsheave to tlie hole in the flange^ so that while the motionis at rest;, as in Fig. 166^ it will pass around the sheave^ inthe direction of…
