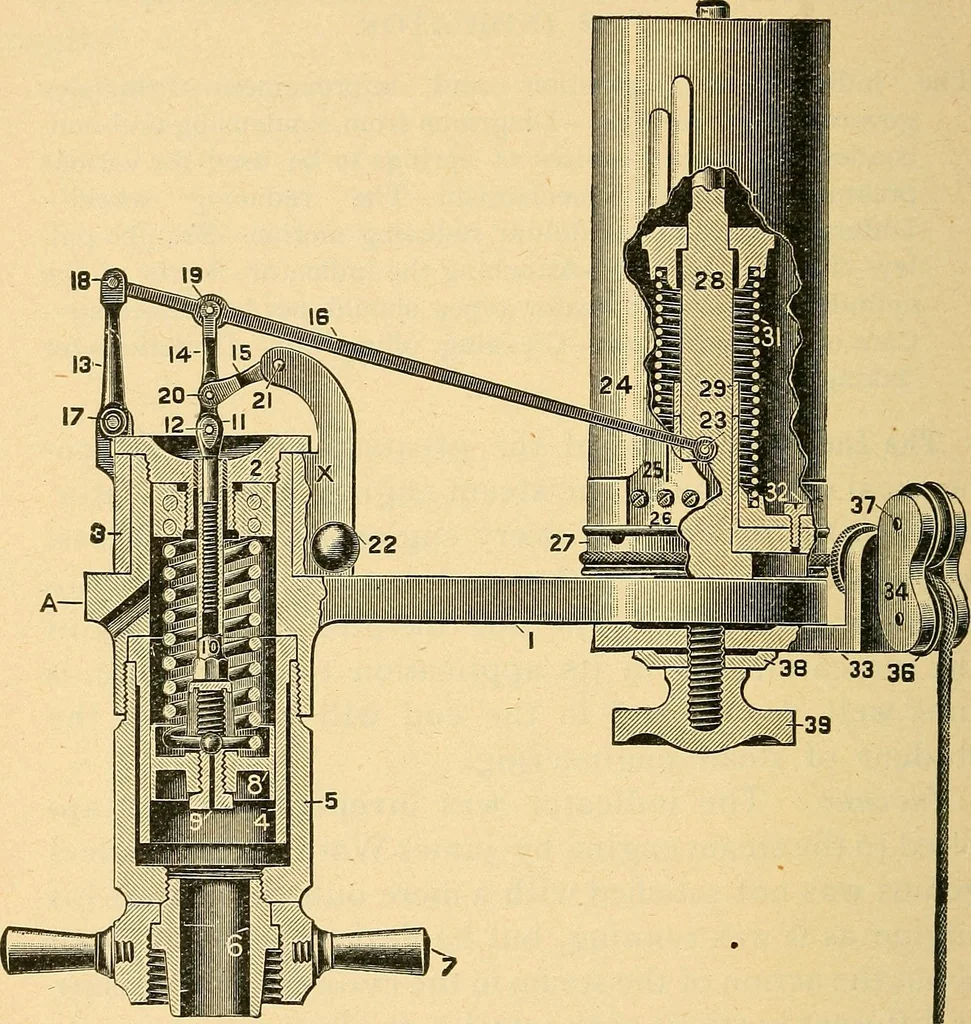

essureat different portions of the stroke, the laws governing itsexpansion after being cut off, etc. Watts indicator,although crude in its design and construction, con-tained embodied within it all of the principles of themodern instrument. Principles. These principles are: First. The pressure of… … SECTIONAL VIEW CROSBY INDICATOR. spring of known tension, so as to confine the stroke ofthe indicator piston within a certain small limit. Second. The stroke of the indicator piston is com-municated by a multiplying mechanism of levers andparallel motion to a pencil moving in a straight line.The…
