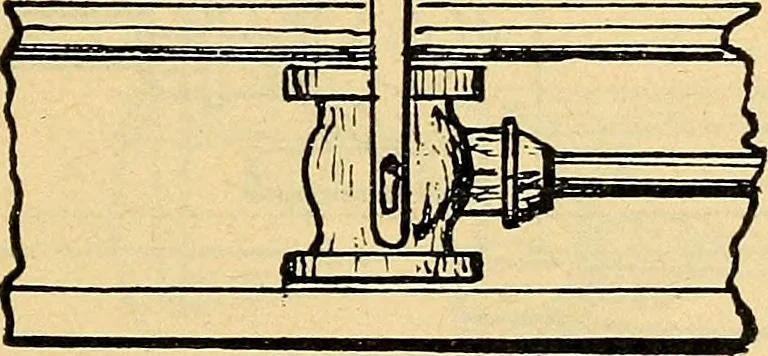

figure 43. assuming the length of the short bar to be one-half thelength of the stroke, proceed as follows: Place the engine on the center with the crosshead atthe end of the stroke towards the crank. Then havingpreviously bored a hole for the pivot in one end of thependulum bar and in the other…
