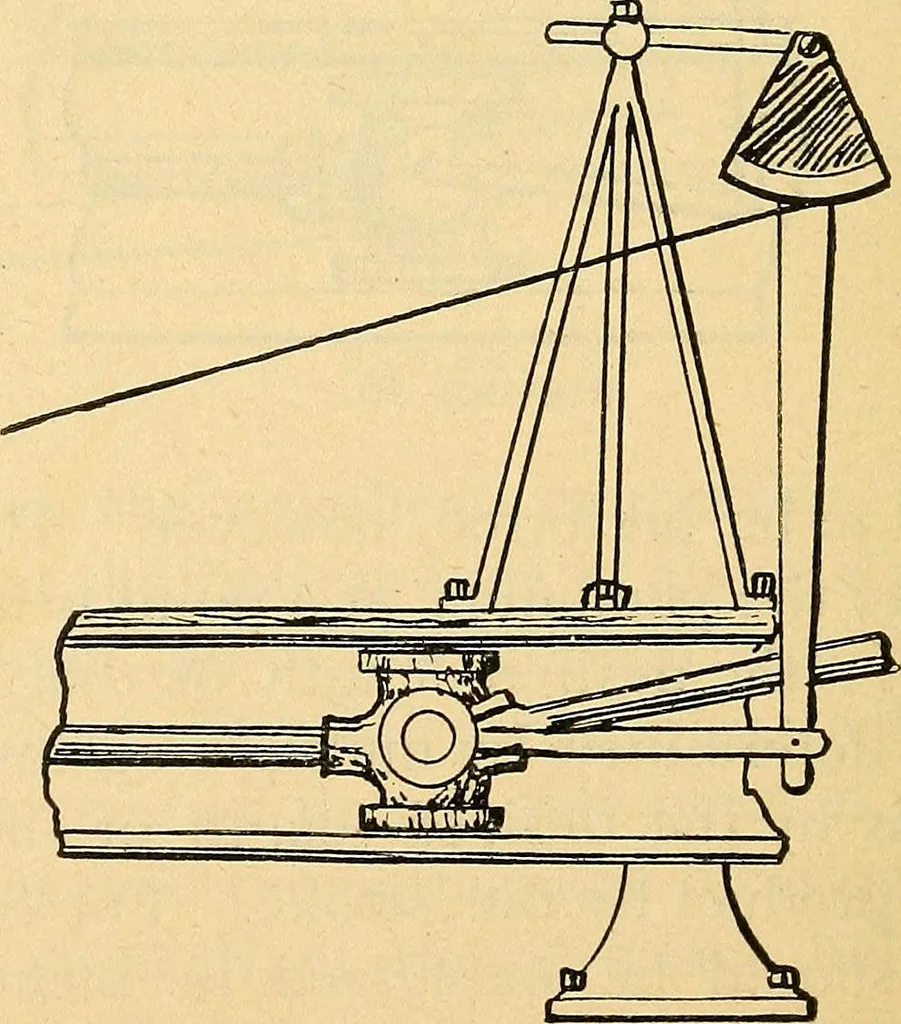

figure 46. the distance from center of pivot to point of connec-tion for the cord. This can be either a small hofe … FIGURE 47. THE INDICATOR 181 bored through the pendulum or a wood screw to whichthe ccrd can be attached. From this point the cordshould be led over a guide pulley located at suchheight that when the pendulum is vertical the cordwill leave it at right angles. After leaving the guidepulley the cord…
