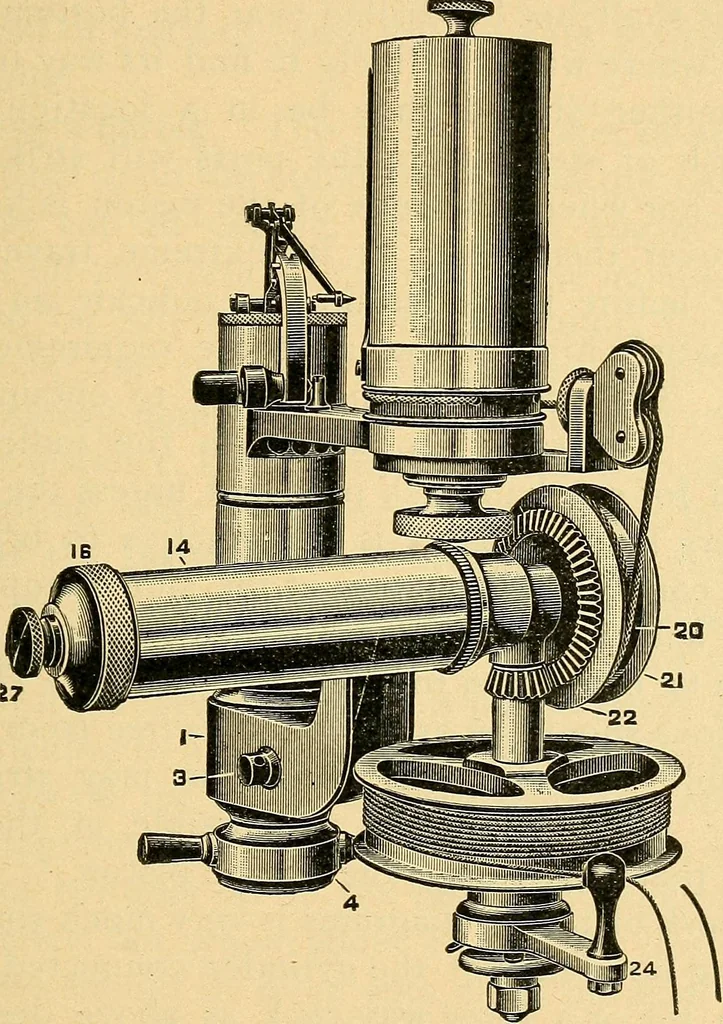

the postfrom the guides must be adjusted so as to allow the •device to close up at mid stroke and open out at fullstroke without any straining of the parts. The pointF of connection for the cord will always have a motion THE INDICATOR 183 parallel with, and simultaneous with, that of the… … CROSBY REDUCING WHEEL. in some cases, especially with long stroke engines, tointroduce a guide pulley to carry the cord from thepantograph. Attaching the Indicator. The cylinders of mostengines at the present time are drilled and tapped for 184 ENGINEERING indicator connections before they leave…
