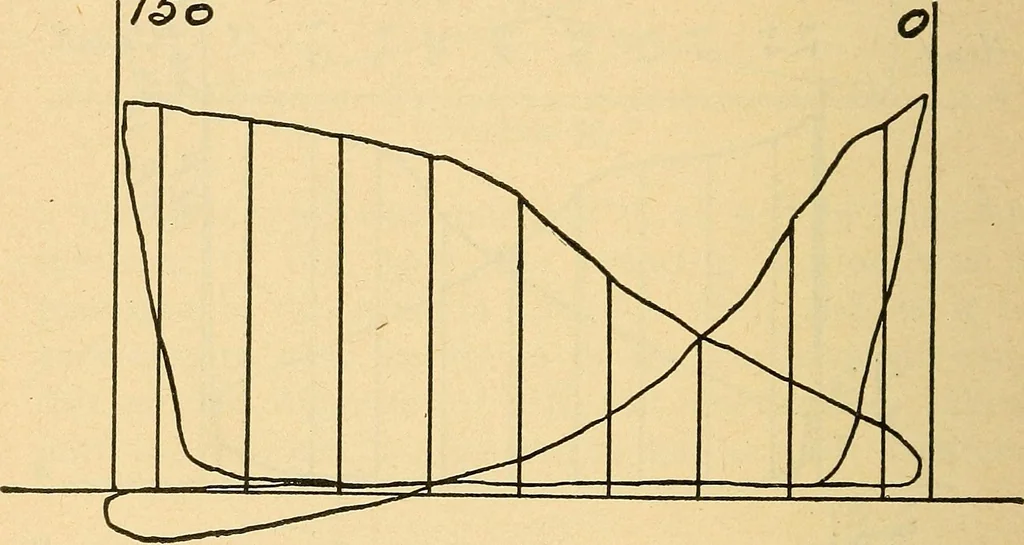

gt; ENGINEERING steam in spite of the fact that the cut off occurs ratherlate. There is no back pressure worth mentioning, theback pressure line forming part of the atmosphericline through the largest part of the stroke. The reasonfor this is that the areas of the exhaust ports as wellas the… … figure 62. sumed per I. H. P. per hour as per diagram Fig. 61was 22.3 lbs., and the horse power developed was 710.6.Figs. 62 to 64, inclusive, represent diagrams from aBuckeye engine 24 x 48 in., and are introduced for thepurpose of emphasizing the need of caution and goodjudgment in setting valves…
