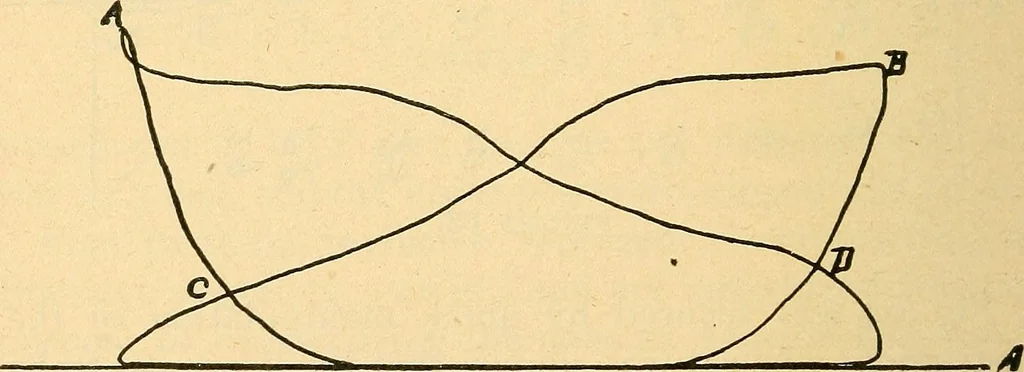

actuated by a shaft governor, the degree of compres-sion varies with the point of cut off in the single valveengine, the compression being higher with an early … figure 65. cut off than it is when cut off occurs later in thestroke. The loop at A is caused by too much lead DIAGRAM ANALYSIS 219 which, together with the compression, caused amomentary rise in the pressure above the normal.The lead at B is approximately correct. The differ- HP ence in terminal…
