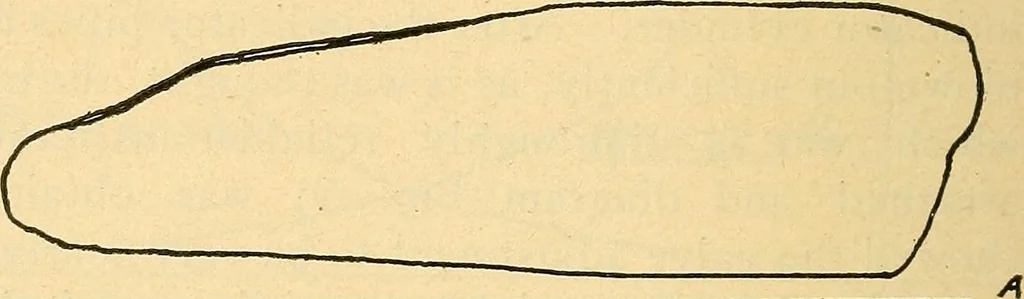

on it andalso on the inside of the cylinder. This fullyexplained the cause of the sharp corners, etc., on thediagram. After the indicator had been cleaned andoiled it was again connected and Fig. 70 was produced,which is a truthful presentation of the performance ofthe steam in the cylinder. Many… … FIGURE 71. Fig. 71 represents a diagram from a vertical non-condensing engine 14 x 16 in. with riding cut off,which the author was called upon to adjust. Thisengine was nearly new, having been run but a fewmonths, and although the size of it was ample to doall the work required, yet it had failed,…
