Twentieth century hand-book for steam engineers and electricians, with questions and answers .. (1905)
Swingle, C. F. [from old catalog], Horstmann, Henry Charles, 1858- [from old catalog], Tousley, Victor Hugo, 1875- [from old catalog] · Chicago, F. J. Drake & co. · leaf 323

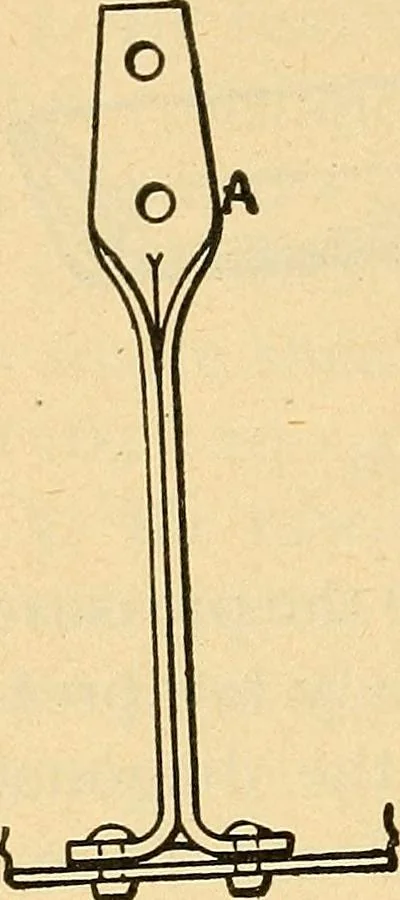

figure 102. 312 ENGINEERING … FIGURE 103. the pull on these rivets is direct and the tensile strengthof the material needs to be considered only, but if theform of the brace is such as to bring the rivet holesabove or below the center line of thebrace, or if the rivets are pitched toofar from the body of the brace, therewill be…
