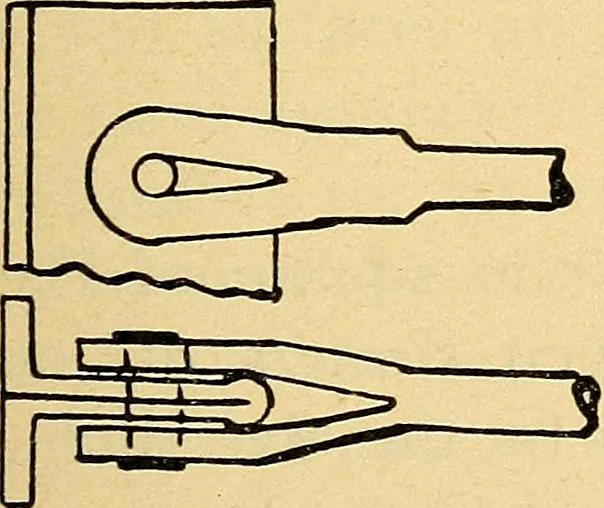

many stay rods would be required to connect all the points to be stayed. A tee iron is first riveted to the flat plate to be stayed, and two V-shaped forgings are bolted to it as shown. The through stay is then bolted to the forgings, and thus two points in the flat head are supported by one stay.… … figuke 109. 318 ENGINEERING faces, or for finding the number of stays required forany given flat surface in a boiler, the working pressurebeing known, it must be remembered that each stayis subjected to the pressure on an area bounded bylines drawn midway between it and its neighbors.Therefore the…
