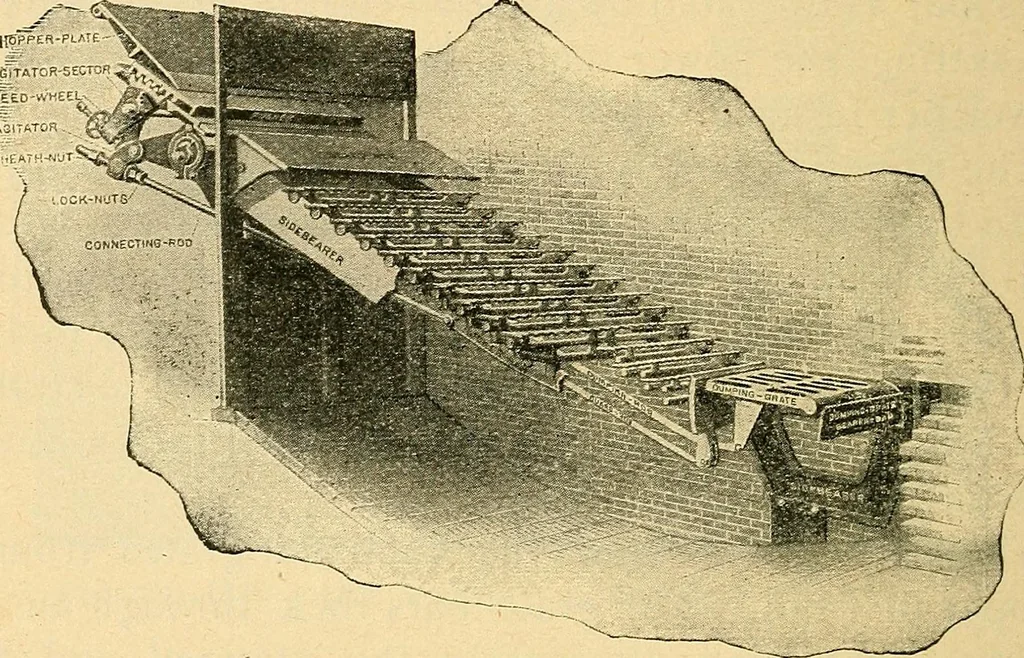

ange of motion is regulated by a feed wheel from nostroke to full stroke, according to the demand for coal.The motion of the grate bars may also be regulated by 340 ENGINEERING a sheath nut working on a long thread on the connect-ing rod. Each grate bar consists of two parts, viz., acast iron web… … FIGURE 119. SECTTONAL PERSPECTIVE OF THE RONEY MECHANICAL STOKER. fuel. The grates lie in a horizontal position acrossthe furnace in the form of steps, and ample provi-sion is made for the admission of air through theslotted webs. A fire brick arch is also sprungacross the furnace, covering the…
