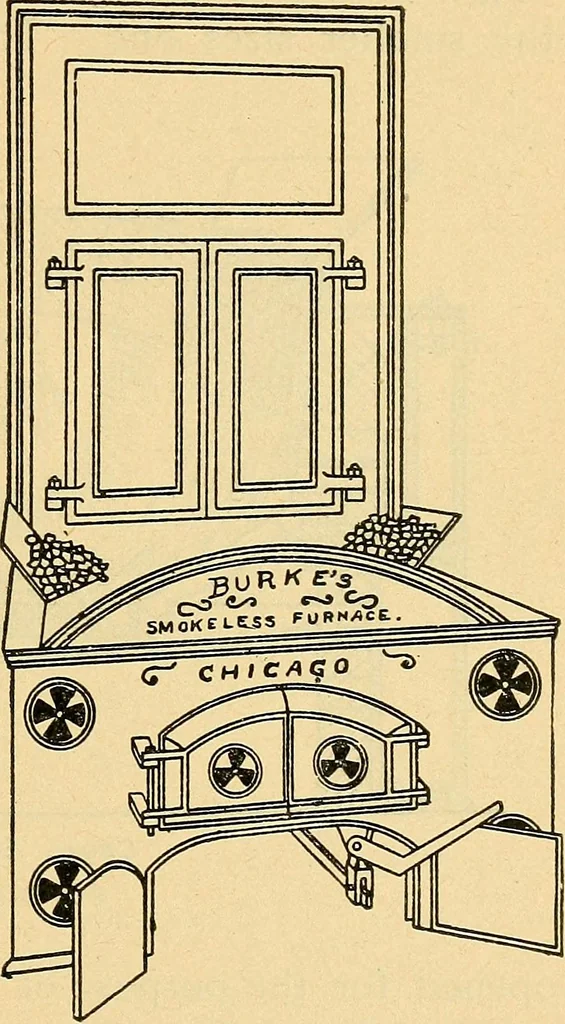

ace,patented by James V.Burke of Chicago, is anotable example of thistype of furnace. It isapplicable to any typeof stationary boiler.Fig. 125 shows this fur-nace as applied totubular boilers. It con-sists of a fire brick archextending from 6 to 8ft. outwards from the boiler front and of a width… … Front View. FIGURE 125. 354 ENGINEERING by it passing to the boiler. The central portion of thegrate bars consists of shaking grates, while the sidebars are stationary and inclined. Fig. 126 is a sectional view and will serve to illustratethe construction of this furnace. The coal is fedthrough…
