Twentieth century hand-book for steam engineers and electricians, with questions and answers .. (1905)
Swingle, C. F. [from old catalog], Horstmann, Henry Charles, 1858- [from old catalog], Tousley, Victor Hugo, 1875- [from old catalog] · Chicago, F. J. Drake & co. · leaf 383

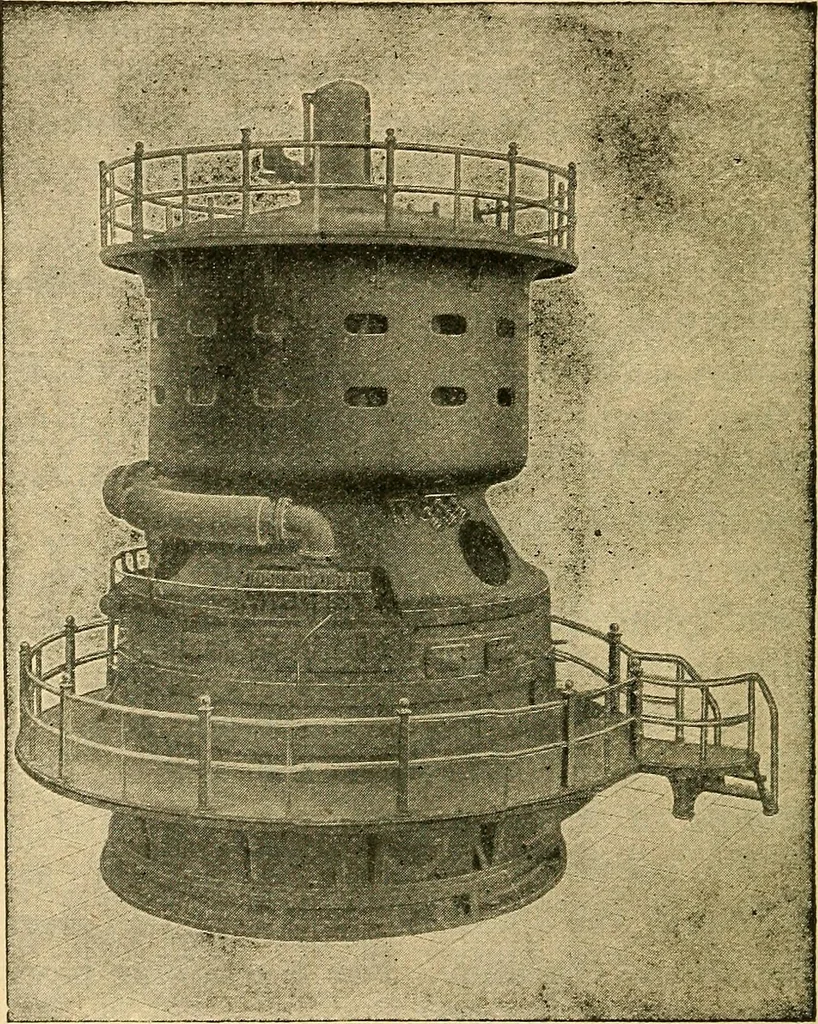

ng consists oftwo cylindrical cast iron plates, bearing upon eachother and having a central recess between them intowhich lubricating oil is forced under pressure by asteam or electrically driven pump, the oil passing upfrom beneath. A weighted accumulator is sometimes 372 ENGINEERING installed in… … FIGURE 134. 5,000 K.W. CURTIS STEAM TURBINE DIRECT CONNECTED TO 5,000 K.W. THREE-PHASE ALTERNATING CURRENT GENERATOR. the step bearing pumps have proven, after a longservice in a number of cases, to be reliable. Thevertical shaft is also held in place and kept steady bythree sleeve bearings, one…
