Twentieth century hand-book for steam engineers and electricians, with questions and answers .. (1905)

Swingle, C. F. [from old catalog], Horstmann, Henry Charles, 1858- [from old catalog], Tousley, Victor Hugo, 1875- [from old catalog] · Chicago, F. J. Drake & co. · leaf 490

An illustration from Twentieth century hand-book for steam engineers and electricians, with questions and answers .., 1905, leaf 490

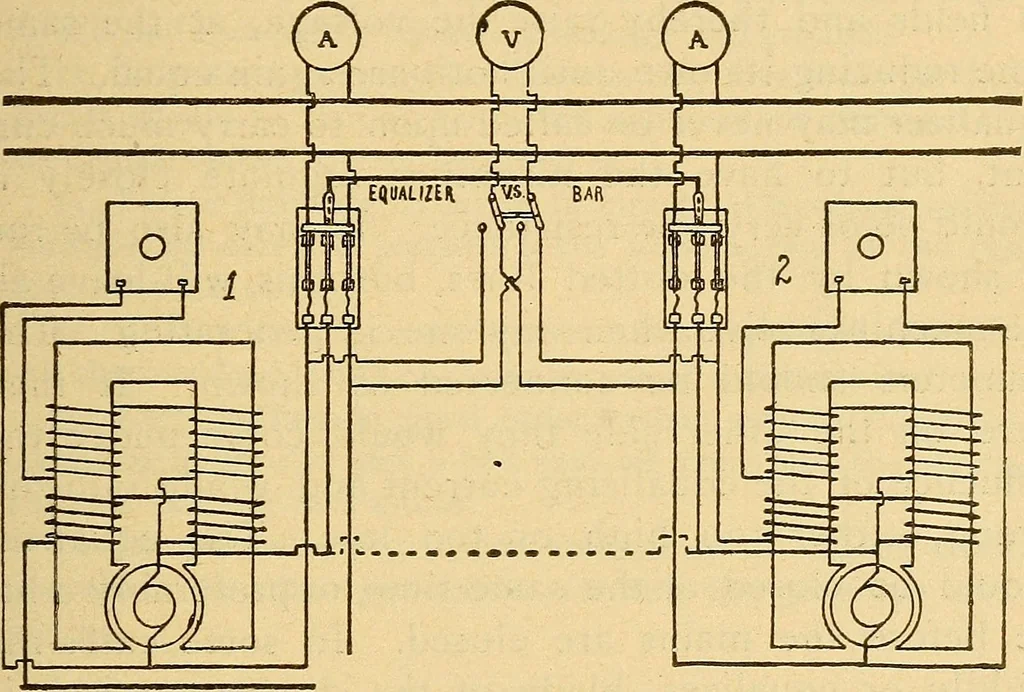

coilsdecrease the total ampere turns acting on the magnetic ELECTRICITY FOR ENGINEERS 71 circuit instead of increasing them as the load comeson. This lowers the magnetic flux and of courselowers the resulting voltage. In such a case it will benecessary to reverse either the field or series coils.… … figure 38, Fig. 38 shows connections for two compound wounddynamos run in parallel. When two or more com-pound wound dynamos are to be run together, theseries fields of all the machines are connected togetherin parallel by means of wire leads or bus-bars whichconnect together the brushes from which…

Steam engineering · Electrical engineering · Steam turbines
