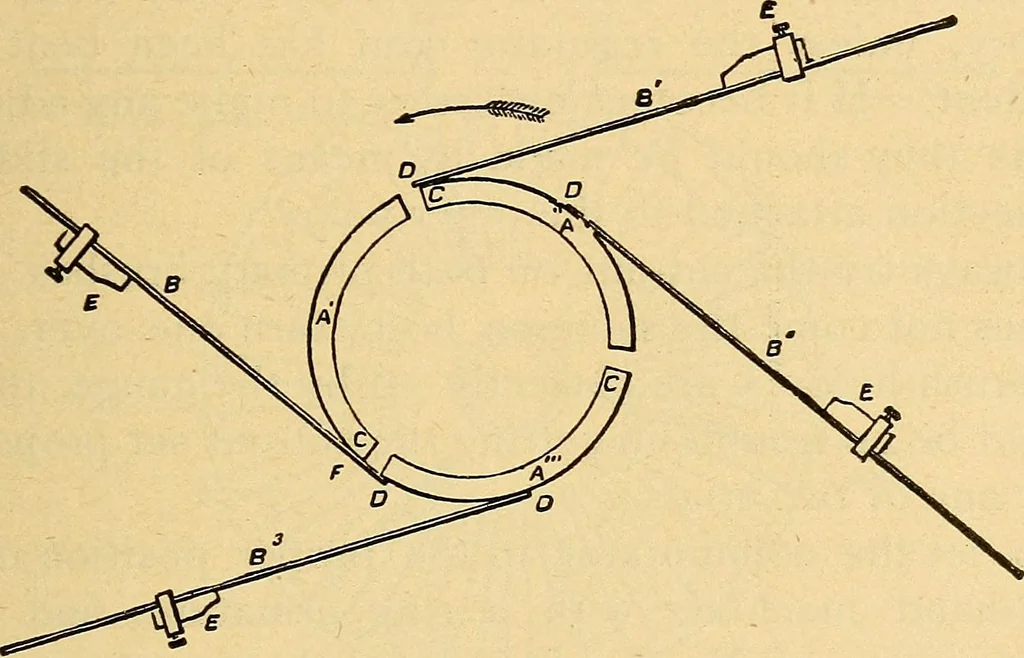

ELECTRICITY FOR ENGINEERS 89 The Thomson-Houston System. The Thomson-Hous-ton dynamo differs from other arc dynamos principallyin the nature of its armature winding. This is shownin Fig. 48. One end of each of the three coils is con-nected to a copper ring common to all. The other endof each coil… … FIGURE 50. Setting the Cut-out. After the brushes are in positionthe cut-out must be set. This is done by turning thecommutator on the shaft in the direction of rotation(if the commutator is set in position the whole arma-ture must be revolved) until any two segments are justtouching the primary…
