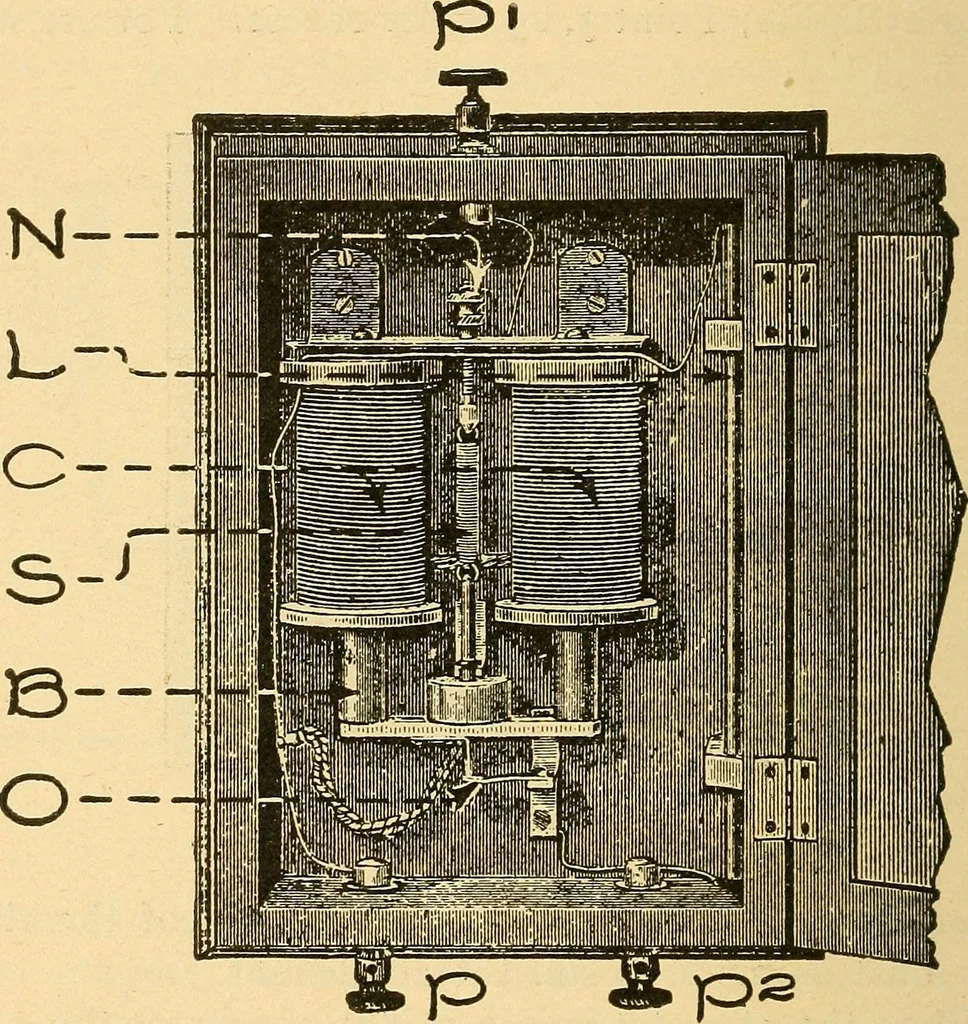

ightsupport, taking care to have it perfectly plumb. It isconnected to the machine in the manner shown in Fig.55, i.e., the binding post P2 on the controller magnet is 98 ELECTRICITY FOR ENGINEERS connected to the binding post P2 (see Fig. 55) on theend of the machine, and likewise the post P on… … FIGURE 58. and P2 P2 are fastened securely in place; for if connec-tion between P and P should be impaired or broken,the regulator magnet M would be thrown out of action,thus throwing on the full power of the machine, and ifthe wire P2 P2 should become loosened, the full powerof the magnet M would…
