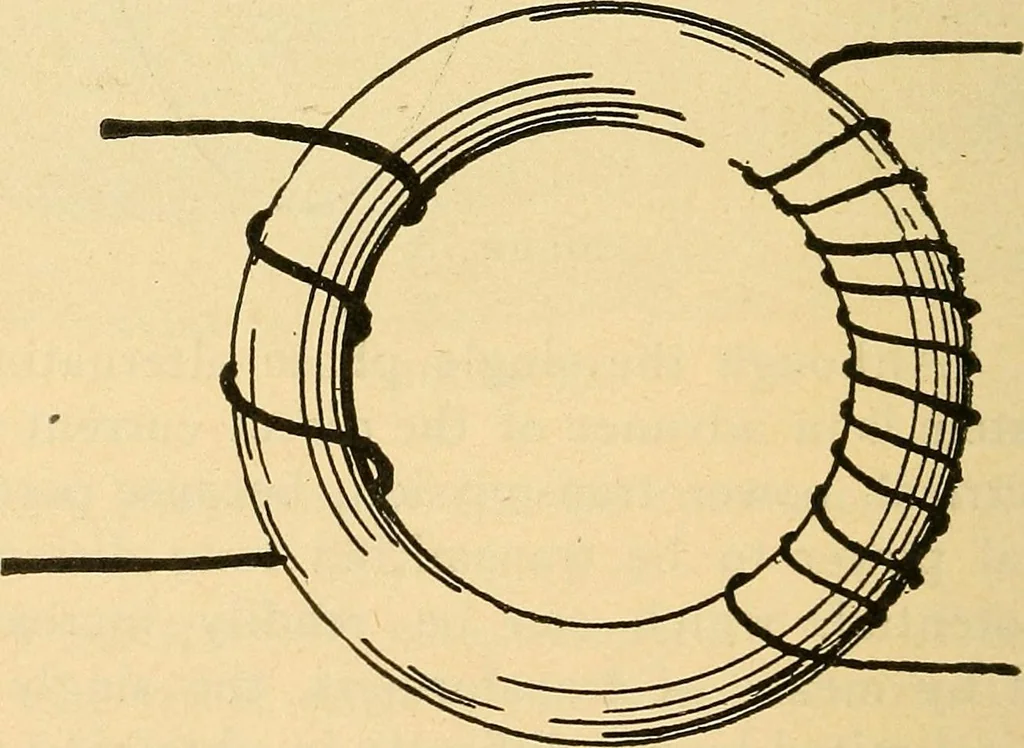

figure 74. tages over them. In the two phase system two cur-rents displaced 90 degrees from each other andotherwise exactly similar to the single phase currentsare used. In the three phase system three currentsseparated 120 degrees are used. These currents areshown in Fig. 74. … FIGURE 75. In Fig. 75 is shown the principle upon which thetransformer used in alternating current work are opera-ted. Two separate coils of wire are wound on a ring ELECTRICITY FOR ENGINEERS LSI of laminated iron. One of the coils contains a num-ber of turns of fine wire, while the other contains…
