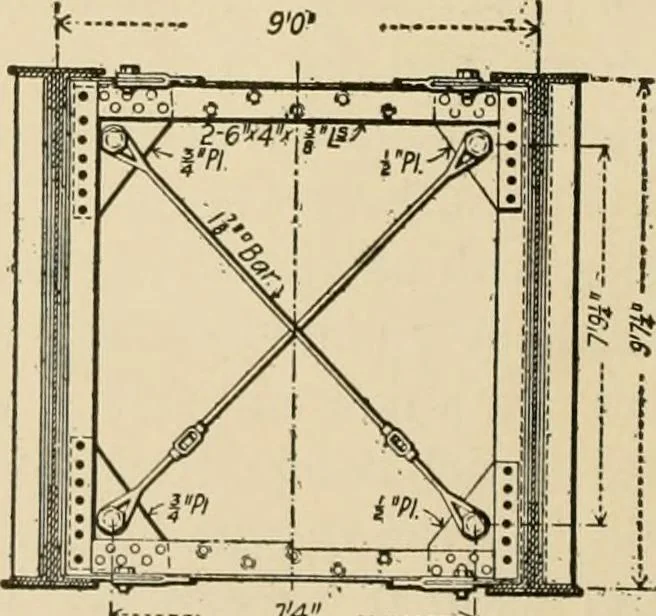

Frame A Frame 8 Hclf Cievotion Half Elevation 105-Ft. Span with Pin-Connected Lateral and Sway Rods. — Bridgeport Bridge. RAILROAD PLATE GIRDER SPANS 85 adjustable pin-connected diagonal rods. At each panel verti-cal sway-bracing is provided by single adjustable transversediagonal rods i^ in.…Bridges
