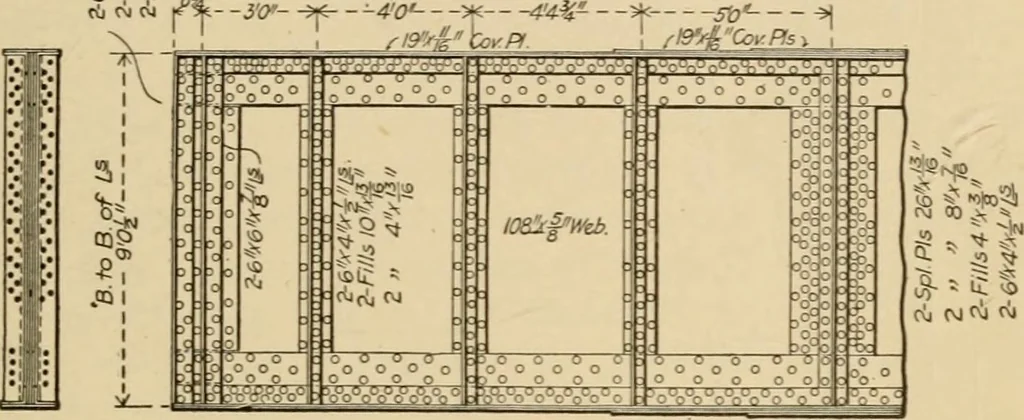

andno side plates. The center girders differed from the side girdensin that the webs are | in. thick throughout, that the flanges RAILROAD PLATE GIRDER SPAXS 87 have side plates, that each web-stiffener angle has a wide anda narrow filler plate, and that the flange cover plates are 19 in.wide. The… … Erd Section.Center Girder.—Sixteen Mile Creek Bridge. opposite sides of the web. In the 105-ft. 8-in. center girder,the flanges are each composed of two 6 x 8 x y§-in. angles, two16 X y|-iii- side plates, three 19 X | and three 19 x ^^f-in.cover plates, and the girder weighs 64^ tons. Newark,…
