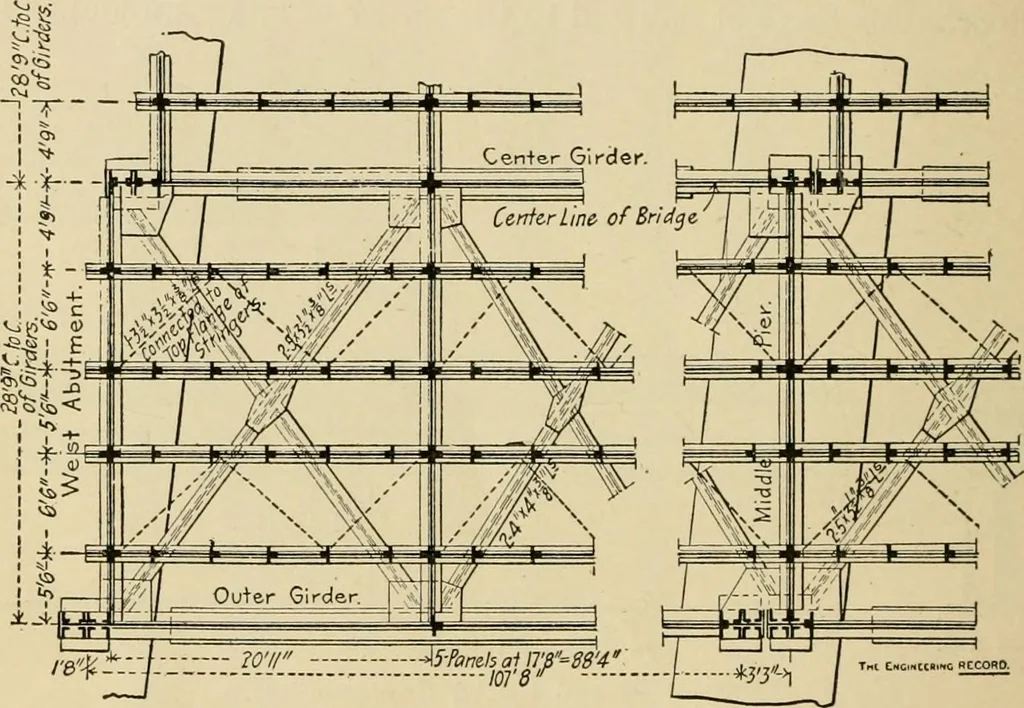

plates with forty-four rivetson each side, and each of the two field splices has 20 x i-in.plates with sixty-six rivets on each side. The depth of thegirders was so great that web plates could not be made to runhorizontally as usual, and therefore they run vertically and arespliced at alternate… … Plan of Typical Panels of Lateral Bracing. — Clyde Bridge. At each end of the lower flange the web is reinforced by two40X I-in. plates i ft. 3| in. long, which extend to its outer andlower edges. All of the lower flange angles are crimped overthese plates, and the eight web-stiffener angles at…
