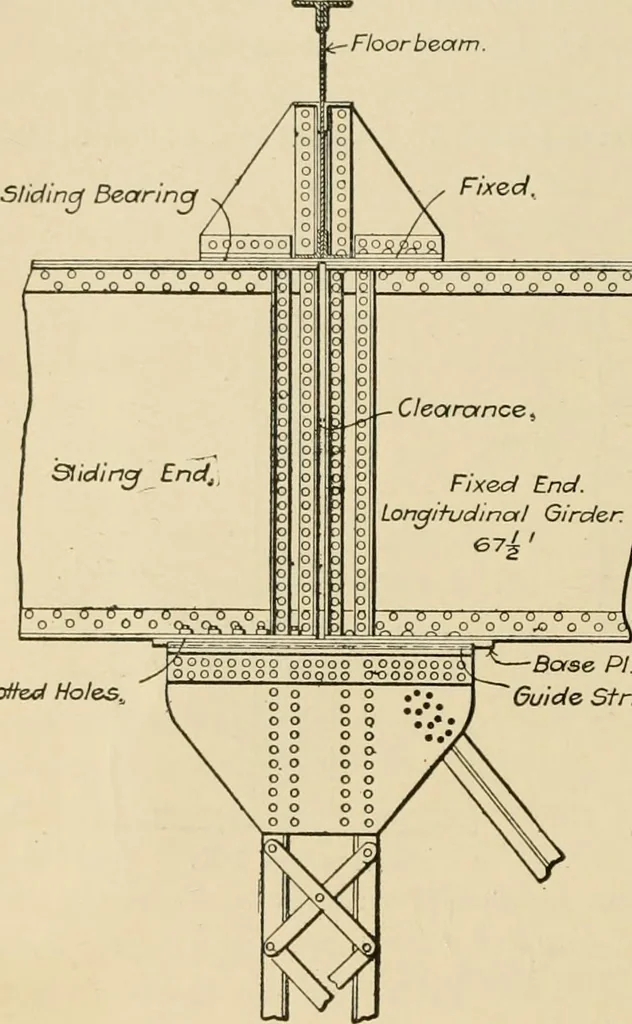

e column, there is one fixedand one sliding girder end, with a clearance of about i in.between them on the center line of the column. The slidingend is bolted to the column cap through slotted holes, andsupports on its upper flange half of the sole plate of the floor-beam. The sole plate is riveted… … Sof^ed Holes. Base PI.Guide Strip and prevent tipping orlongitudinal displace-ment of the floorbeam.One end of the ^oleplate or floorbeam ped-estal, is field-rivetedto the top flange ofthe fixed girder andthe other end takesbearing on the topflange of the slidinggirder, which thus re-ceives half…
