Skinner, Frank W. (Frank Woodward), 1858-1932 · New York, McGraw · leaf 188

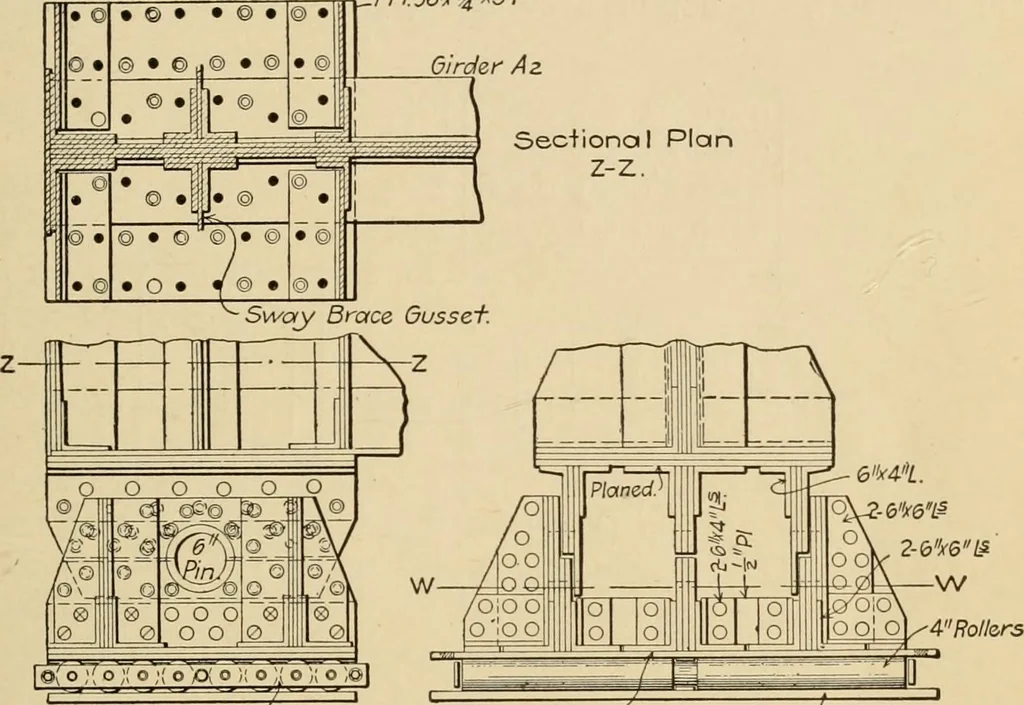

of the corresponding shoe andpedestal webs so as to clear, and making the transverse vertical 170 PIN BEARINGS IN RIVETED EXPANSION SHOES I/I section of the joint between the shoe and pedestal Z-shape.The expansion end pedestals are seated on nests of eight 4-in.rollers with center grooves to… … <-3i-^4 Intermediate Heavy AbutmentRoller Shoe and Pedestal A. Planed^ 57/l^/5l ^ /-1-PI. J7xgx5l^Ptaned fo %
