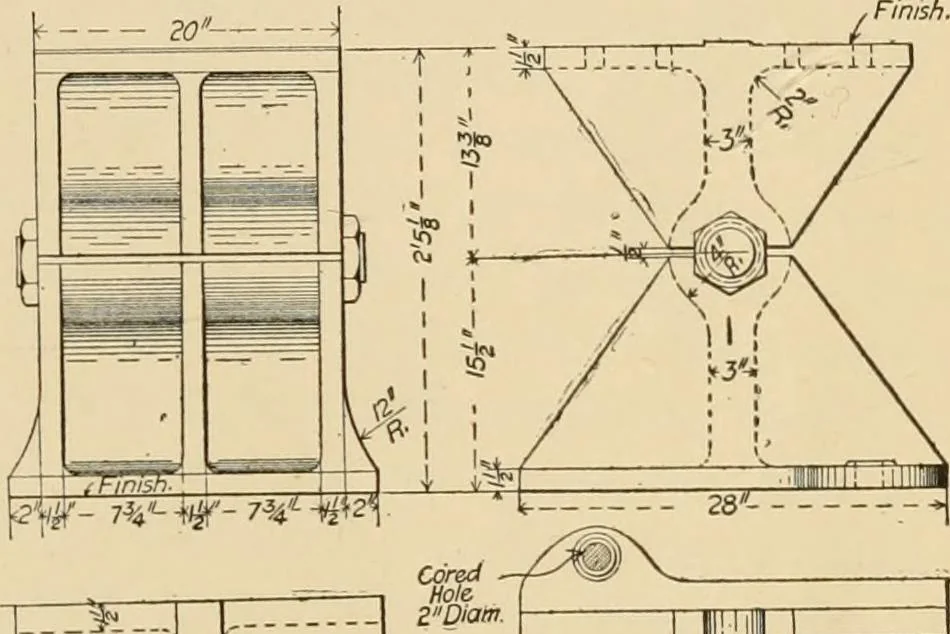

s of the girders aswell as the fixed ends over the columns the sole plates havelongitudinal center slots planed in them to engage guide ribs onthe bed plates riveted to the tops of the columns. The pedes-tals are seated on sheets of soft lead interposed between themand the granite coping of the… … Holes DnHediSfikTurnedBol S, CoredHoleZDiam. 1 - ~ / 1 Abutment PedeS^ols. Southwestern Avenue Boulevard Bridge. 188 BRIDGE CONSTRUCTION Other, and those at the sides clearmg each other and having fullpin-holes to lock themselves together. The shoes are bolteddirectly to the girder flanges.…
