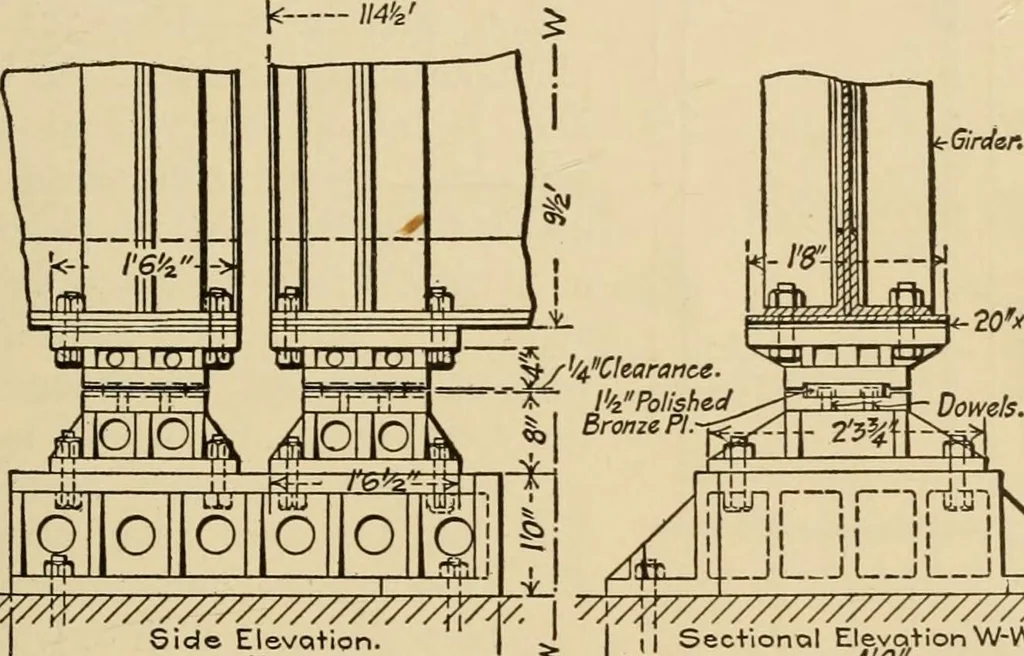

late, and lock thegirder against transverse displacement. The bronze plate is tap-bolted to the bed plate, and the pedestal is anchorbolted to themasonry. The fixed ends of the girders are seated on ordinarycast iron pedestals. Rockford. — The expansion ends of two 73-ft. plate girders ina bridge,… … yM//////////////////////. Side ElevQ+ion40 jBl? I I Sectional ElevotionW-VV.I I|<„_ 40 IJ->| Janesville Bridge, C. M. & St. P. Ry. plates, like those for the lattice girders, which are parallel to themand form part of the same span. There are two center latticegirders, and two outside…
