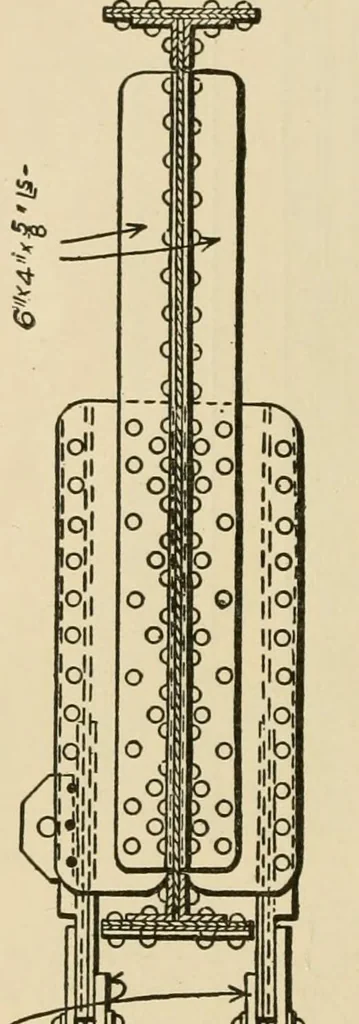

thepin connection and are reinforcedby riveted pin plates. Thisarrangement seats the pin so lowand extends the width of theshoe base plate so much that itsecures maximum stability forthe girder, and at the same timetransmits all the bearing pres-sure directly to the web. Chicago Terminal… … i4SplH- Bolts. Sfec+ion X-XHarvard Highway Bridge. which has a maximum end shearof 475,500 lbs. In the endpanels the lower part of theweb is reinforced to a totalthickness of 5| in., and bored for main bearing pins I2| in.diameter. The pins are of cast steel with a diameter reducedto iii in.,…
