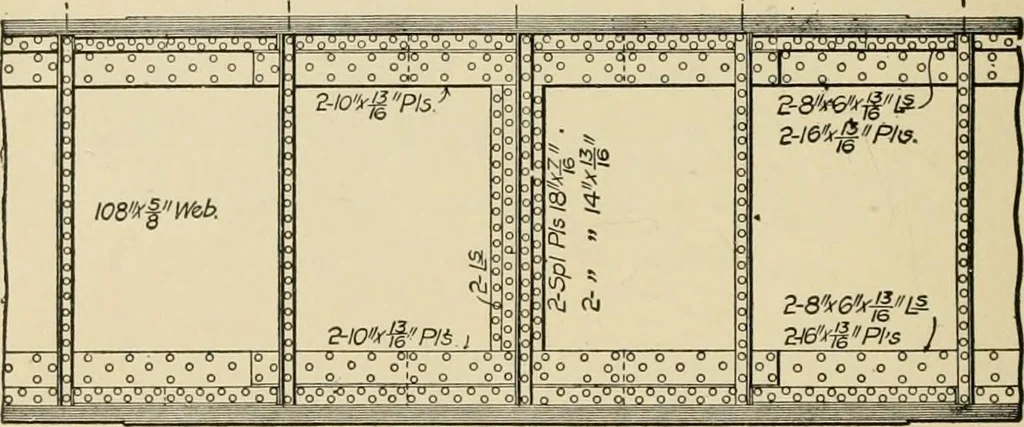

gle7i X 7i >^ s-i- cover angles 4 ft. ()h in. long. The 21 x |-in.side flange plates each have two splices made with 17f X |-in.cover plates nearly 10 ft. long, serving the joints on oppositesides of the web. The flange cover plates were made in full-length pieces without splices. Sixteen-Mile… … M iddls Section. Sixteen Mile Creek Bridge, Grand Trunk R. R. Trunk Railway, Canada, are i o ft. deep and have |-in. web plates inlengths of from 16 to 19 ft., shop-spliced with pairs of 18 X ^^g-in.and 14 X y|-in. cover plates cut to clear the flanges. The flangesare made with pairs of i6-in. side…
