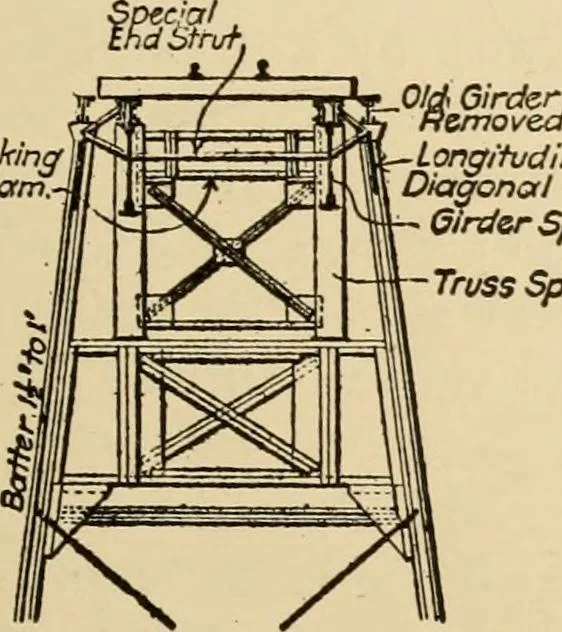

ns arenot cut off, but their tops arecapped, as previously described,with bent plates that receivethe riveted connections of thesestruts and of another set, whichare field-riveted at the oppositeend to the webs of the 50-ft. gir-ders. Their points of connec-tion to the girders are connectedby… … Tower Bent supporting New Truss Span. 248 BRIDGE CONSTRUCTION from both truss and girder spans through the wing plates on thetops of the cokimns, which engage the upper ends of thelongitudinal diagonal brace rods, as already described. Thissystem was designed after the superstructure had been…
