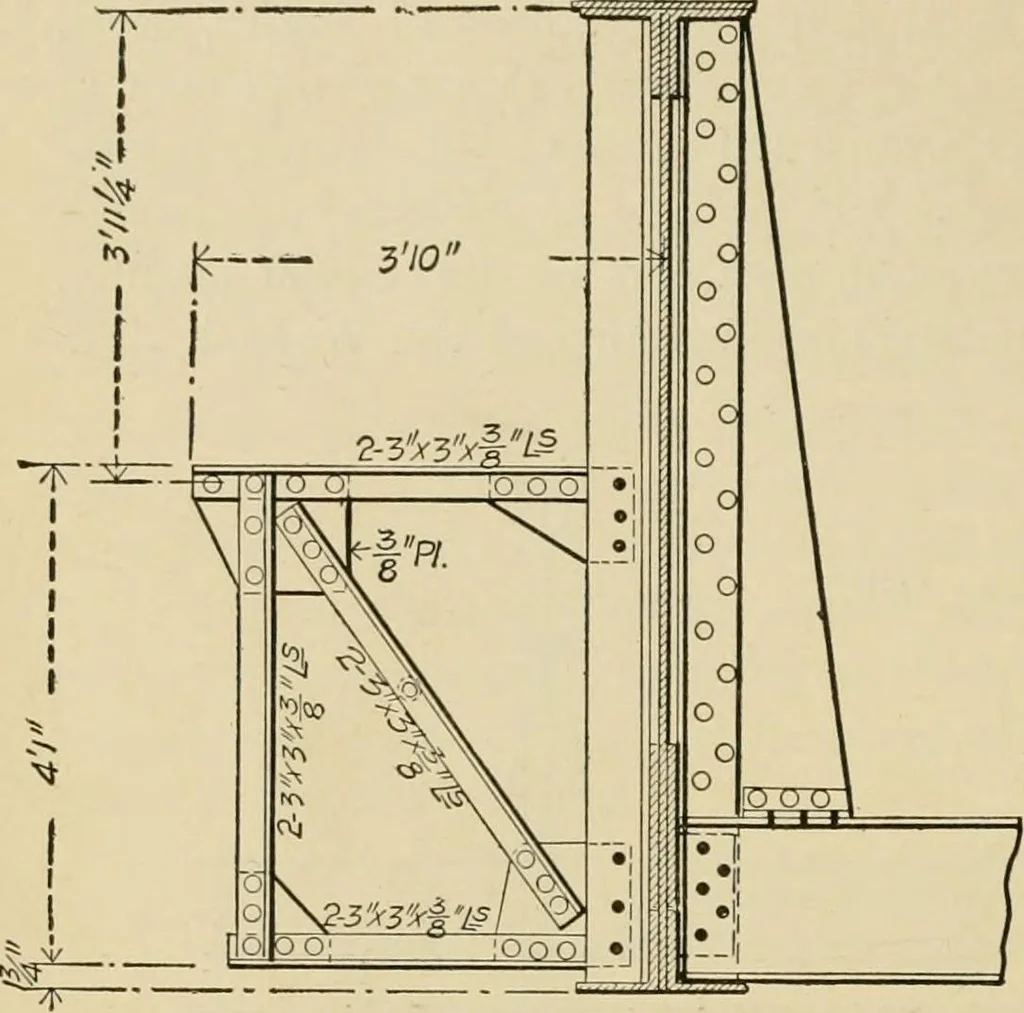

page. The 15 in. 4S-lb.I-beam floorbeams are i8i in. apart on centers in the middle ofthe span, and 19 in. at both ends. Each beam is web-con-nected to each girder with 10 field rivets, and at panel pointsthe top flanges are field-riveted to narrow kneebrace plates,without inclined flange angles,… … Seo+ion B-B.sidewalk Broicke+. Cross Section of Outside Girder. flanges withangles, twocover plates. The in-side flange anglesare about 73^ ft.long, cut to clearthe end web-stiffenerangles, and are re-markable for havinga 3-in. clearance withthe outside flangeangles,which is giventhem in order to…
